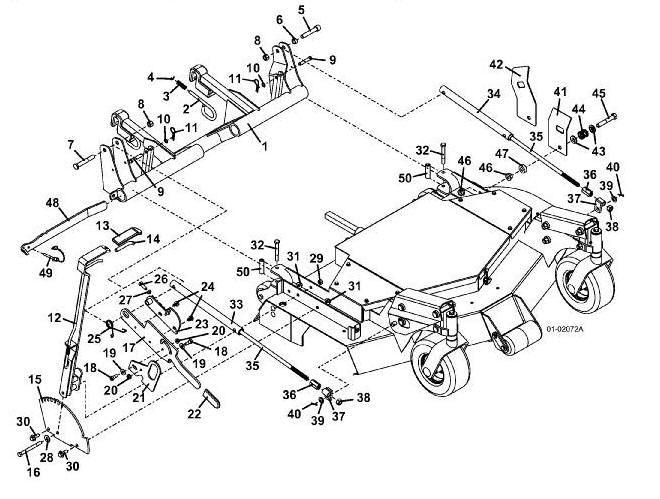

3348 48 Inch Lift Arm & Linkage Assembly - 2008
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 604543 - LIFT ARM ASSY - 3344 | Add To Cart | |
| 604546 - LIFT ARM ASSY - 3348 | Call For Details | ||
| 2 | 730433 - LATCH PIN - DECK MOUNT | Add To Cart | |
| 3 | 283285 - SPRING - COMPRESSION | Add To Cart | |
| 4 | 263490 - RETAINER EXTERNAL | Add To Cart | |
| 5 | 259640 - SOCKET HEAD SCREW | Add To Cart | |
| 6 | 902282 - SPACER - ACTUATOR STOP | Add To Cart | |
| 7 | 243609 - HEX BOLT | Add To Cart | |
| 8 | 253930 - NUT LOCK | Add To Cart | |
| 9 | 261362 - CLEVIS PIN | Add To Cart | |
| 10 | 262950 - RETAINER PUSH-ON | Add To Cart | |
| 11 | 260523 - HAIR PIN | Add To Cart | |
| 12 | 644475 - DECK LIFT LEVER -33 SERIES | Call For Details | |
| 13 | 422155 - GRIP HANDLE | Add To Cart | |
| 14 | 422158 - GRIP HANDLE | Add To Cart | |
| 15 | 726037 - LEVER MOUNT - L48 | Call For Details | |
| 16 | 243385 - HEX BOLT | Add To Cart | |
| 17 | 824174 - CONNECTING ARM - 33S LIFT F/A | Add To Cart | |
| 18 | 259722 - BOLT SHOULDER | Add To Cart | |
| 19 | 257030 - WASHER | Add To Cart | |
| 20 | 253035 - NUT WHIZ | Add To Cart | |
| 21 | 783063 - LATCH - CONNECTION ARM L48 | Add To Cart | |
| 22 | 422153 - GRIP - HANDLE - BLACK | Add To Cart | |
| 23 | 824566 - BRACKET - LIFT LINKAGE ADJUSTMNT | Add To Cart | |
| 24 | 253189 - BOLT WHIZ | Add To Cart | |
| 25 | 284423 - SPRING - TORSION | Add To Cart | |
| 26 | 243205 - HEX BOLT | Add To Cart | |
| 27 | 254440 - NUT | Add To Cart | |
| 28 | 257040 - WASHER | Add To Cart | |
| 29 | 253890 - NUT LOCK | Add To Cart | |
| 30 | 253203 - BOLT WHIZ FLANGE | Add To Cart | |
| 31 | 253043 - NUT WHIZ | Add To Cart | |
| 32 | 243365 - HEX BOLT | Add To Cart | |
| 253890 - NUT LOCK | Add To Cart | ||
| 33 | 644448 - LIFT TUBE - 3344 RIGHT | Add To Cart | |
| 644455 - LIFT TUBE - 3348 RT | Add To Cart | ||
| 34 | 644449 - LIFT TUBE - 3344 LEFT | Call For Details | |
| 644456 - LIFT TUBE - 3348 LT | Add To Cart | ||
| 35 | 243670 - ROUND HEAD BOLT | Add To Cart | |
| 36 | 321185 - SLEEVE NUT - HEIGHT ADJUSTMENT | Add To Cart | |
| 37 | 644072 - BRACKET - LIFTROD -33 SERIES | Add To Cart | |
| 38 | 254470 - NUT | Add To Cart | |
| 39 | 257063 - WASHER | Add To Cart | |
| 40 | 260650 - COTTER PIN | Add To Cart | |
| 41 | 729169 - DECK LATCH - L48 | Call For Details | |
| 42 | 729231 - LATCH - DECK 33S W/BLOWER | Call For Details | |
| 43 | 257067 - WASHER | Add To Cart | |
| 44 | 283332 - SPRING - COMPRESSION | Add To Cart | |
| 45 | 243600 - HEX BOLT | Add To Cart | |
| 46 | 253067 - NUT FLANGE SPIRAL LOC | Add To Cart | |
| 47 | 902292 - SPACER - TILT LATCH | Add To Cart | |
| 48 | 783068 - TRACTION KIT TOOL - L48 | Add To Cart | |
| 49 | 261624 - LINCH PIN | Add To Cart | |
| 50 | 902284 - SPACER - ROLLER MOUNT | Add To Cart |
