Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

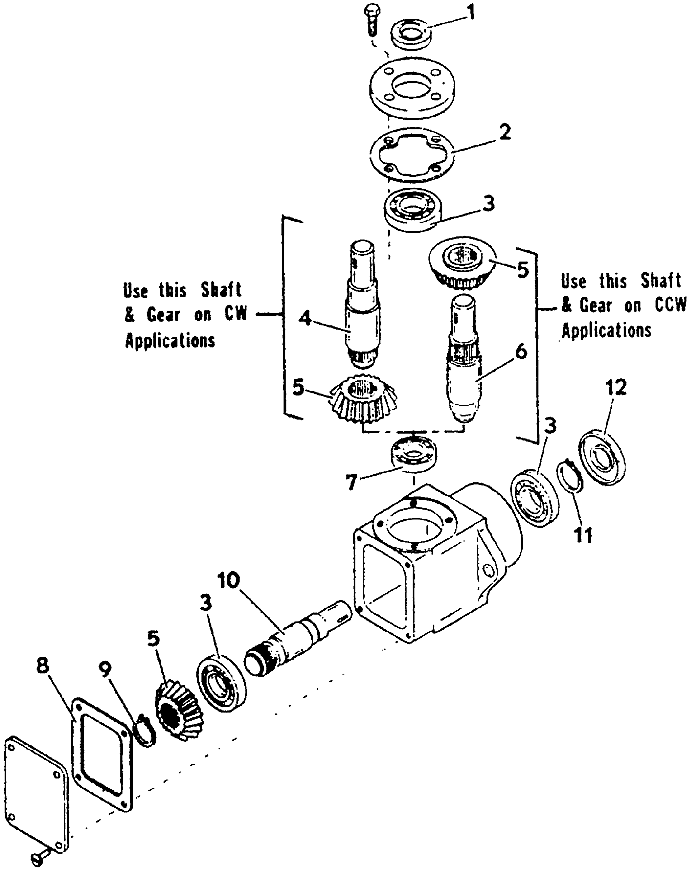

6044 Deck • Right Angle Gearbox Assembly

1985 & 1986

Right Angle Gearbox

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Seal

125336

2

Gearbox Cap Gasket

420201

3

Ball Bearing

120071

4

.875 Shaft

393515

5

.865 8 Pitch Gear Bevel

392500

6

1.000 Shaft

393517

7

Ball Bearing

392500

8

Gearbox Gasket Cover

420200

9

External Retainer

263530

10

.875 Shaft

393513

11

External Retainer

263540

12

Seal

125339

13

clockwise Right Angle Gearbox

390020

14

counterclockwise Right Angle Gearbox

390021

return to 6044 index return to top of page
