720K   725K   •   Wiring Assembly

2001

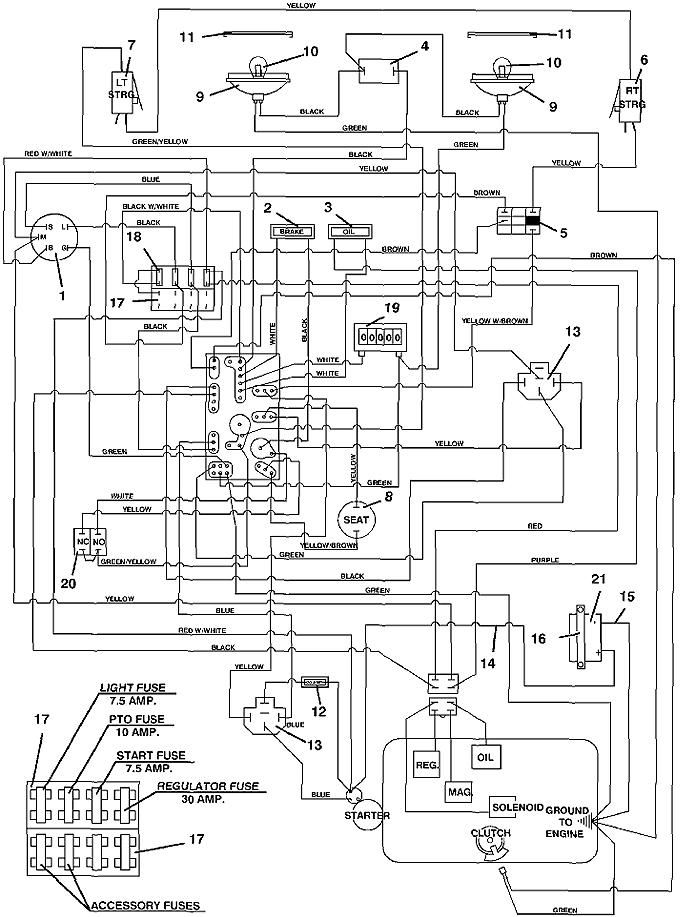

Wiring Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Briggs & Stratton / Kohler Key Switch

183806

-

Ignition Key with Cover

101101

-

Nut

254498

-

Plastic Panel

422078

2

Brake Indicator Light

182326

3

Oil Indicator Light

182327

4

Rocker Switch

184179

5

Push/Pull Switch

183925

6

Lever Switch

183860

-

Steering Switch Mount - right

720160

7

Lever Switch

183860

-

Steering Switch Mount - left

720161

8

Seat Switch

183870

9

Flood Worklamp Assembly

182253

10

Worklamp Light Bulb

182005

11

Snap Mount Worklamp Bezel

182251

12

Inline Auto Fuse Holder

181735

-

30 amp ATC Auto Fuse

181470

13

12v DC Relay with Mount

184271

-

Type 1 6mm Push-On

184570

-

.250 Fast-On Terminal

184581

-

5 Way Female Connector

184926

14

35" Red Battery Cable

180335

-

Starter Terminal Boot

425219

15

20" Black Battery Cable

180280

16

Battery Hold-Down Strap

604785

17

Fuse Block

181722

-

1 Wire Fuse Clip

184458

-

2 Wire Fuse Clip

184460

-

Double Fuse Clip

184472

18

30 amp Auto ATC Fuse

181470

-

10 amp Auto ATC Fuse

181462

-

7.5 amp Auto ATC Fuse

181460

19

Snap-In Hour Meter

141551

20

Brake Interlock Switch

183894

21

12 Volt Wet Battery

180125

22

2000 700K/725K Wiring Assembly

604994

23

Decal for Air Cooled Console

161130

return to 720K 725K index return to top of page
