Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

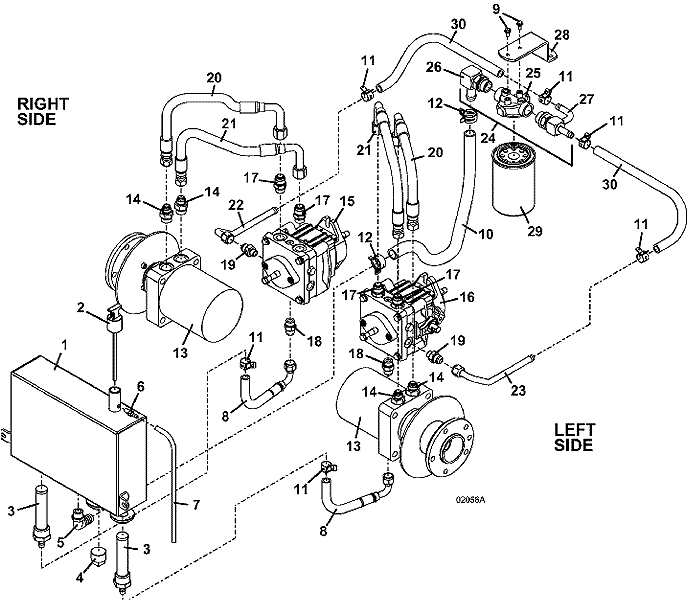

722D2 • Reservoir & Hose Assembly

2004

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

700G2 Oil Tank (Reservoir) Assembly

603703

2

Plastic Oil Reservoir Dipstick

100729

3

Strainer

366556

4

Plug

365535

5

Nylon Fitting

363853

6

Straight Barbed Fitting

363826

7

Clear Vent Hose

821724

8

Hose Assembly

424331

9

Hex Whiz Bolt

253173

10

.75 Hydraulic Hose

821804

11

Spring Hose Clamp

280265

12

Spring Hose Clamp

280268

13

Wheel Motor with Hub

603602

14

Adapter O-Ring

360063

-

O-Ring

126527

-

O-Ring

126537

15

Hydro Pump - right

391463

-

Seal

125165

-

Square Charge Cover Seal Ring

130020

16

Hydro Pump - left

391462

-

Seal

125165

-

Square Charge Cover Seal Ring

130020

17

Adapter Fitting

360064

-

O-Ring

126529

-

O-Ring

126535

18

Steel O-Ring Boss Fitting

363832

19

Adapter Fitting

360081

20

Hose Assembly

424371

21

Hose Assembly

424372

22

Tube Assembly - right

424602

23

Tube Assembly - left

424603

24

Filter Base Assembly

101020

25

Filter Base

101027

26

Adapter O-Ring

360076

27

Adapter O-Ring w/90 degree Elbow

360074

28

721DG2 Oil Filter Mount

732609

29

Transmission Oil Filter

100860

30

Hydraulic Hose

821799
