Genuine OEM Grasshopper® Mower Parts Diagrams

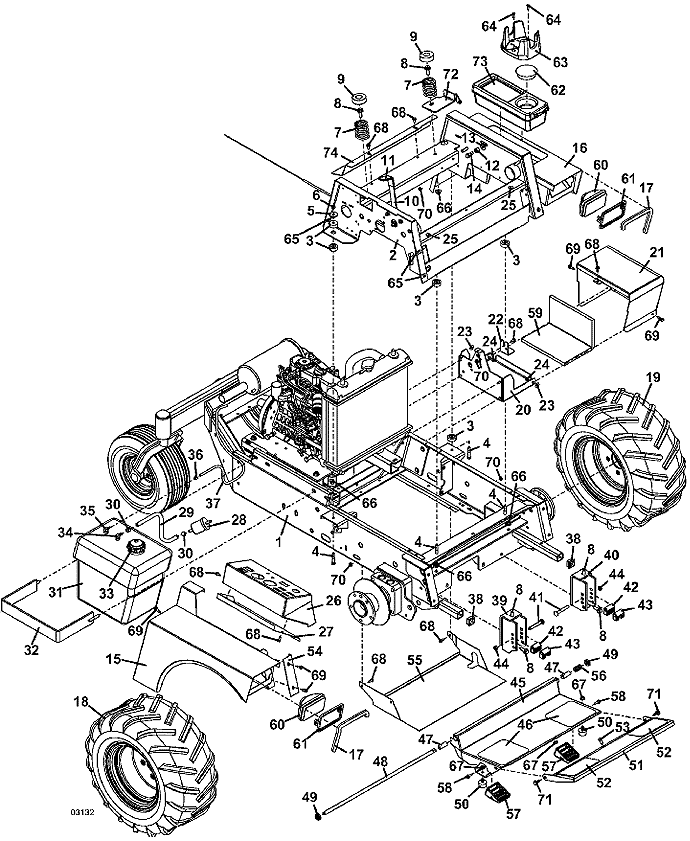

722D2 • Tractor Assembly

2004

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Lower Frame 722D

644297

2

Upper Frame G2

643871

3

Step Bushing

257037

4

Hex Bolt

243220

5

Washer

774020

6

Nylon Insert Nut

253450

7

Compression Spring

283516

8

Flange Whiz Bolt

253203

9

Seat Spring Cap

422127

10

Throttle Assembly

603858

-

Throttle Cable Assembly

323656

-

Throttle Lever Stop

722009

11

Handle Grip

422150

12

Spacer

902280

13

Washer

257040

14

Hex Bolt

243330

15

Fender w/Decal 700/900S right

693210

-

722D Trim Decal - right

163200

16

Fender w/Decal 700/900S left

693211

-

722D Trim Decal - left

163201

17

Fender Edge Trim - 300/700/900

822635

18

Wheel & Bar Tread Tire, 10" - right

483942

-

5 Bolt Wheel Only, 10"

483420

-

Bar Tread Tire Only, 10"

482483

-

Wheel & Turf Tire, 10"

483924

-

Turf Tire Only, 10"

482474

19

Wheel & Bar Tread Tire, 10" - left

483943

-

5 Bolt Wheel Only, 10"

483420

-

Bar Tread Tire Only, 10"

482483

-

Wheel & Turf Tire, 10"

483924

-

Turf Tire Only, 10"

482474

20

Battery Box w/o Draw Latch

644163

21

Battery Box Lid w/o Draw Latch

644478

22

Battery Hold Down Bracket

754135

23

Washer

257020

24

Nylon Insert Nut

253440

25

Rubber Bumper

424015

26

Console w/Decal for Liquid-Cooled Diesel

693104

27

Fill Panel - 96 Console

721152

28

Kubota Fuel Prefilter

101005

29

928D Fuel Line Hose

821716

30

Spring Hose Clamp

280261

31

Diesel Fuel Tank Assembly

603812

32

Fuel Tank Mounting Bracket

643144

33

Cap w/Fuel Level

141125

34

Fuel Draw Tube

101818

35

Fuel Draw Tube

101817

36

Spring Hose Clamp

280257

37

Fuel Return Hose - 300S

821741

38

Square Plastic Plug

422065

39

QD 700/900 Deck Mount - right

643092

40

QD 700/900 Deck Mount - left

643093

41

Special Carriage Bolt

247280

42

Deck Mount Bushing

282575

43

Floating Deck Mount Bushing

282576

44

Nylon Insert Nut

253460

45

Adjustable Foot Platform Assembly - 700/900

604346

46

Foot Rest Tread

420905

47

Nylon Bearing

422615

48

Foot Platform Pivot Rod - 700

780673

49

Nylon Insert Nut

253470

50

Rubber Bumper

424052

51

Foot Platform Extension - 700

603301

52

Foot Rest Extension Tread

420904

53

Carriage Bolt

247130

54

Fender Cover Panel - right

722062

55

Trash Shield - G2

721383

56

Compression Spring

283312

57

Footrest Isolator Block

424100

58

Hex Bolt

243026

59

Battery Tray Pad

427278

60

Flood Worklamp

182253

61

Snap Mount Worklamp Bezel

182251

62

Cup Hole Plug

422066

63

Cup Holder

150225

64

Cap Screw

259030

-

Nut

254436

65

Speed Nut

254431

66

Whiz Nut

253043

67

Whiz Nut

253035

68

Hex Whiz Bolt

253173

69

Hex Whiz Bolt

253175

70

Whiz Nut

253025

71

Hex Flange Whiz Bolt

253192

72

Brake Pin Reinforcement

729230

73

Tool Box

422040

74

722D I-Coupler Shield

722741

75

Decal Set - 722D2 w/ Side Console

604204
