Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

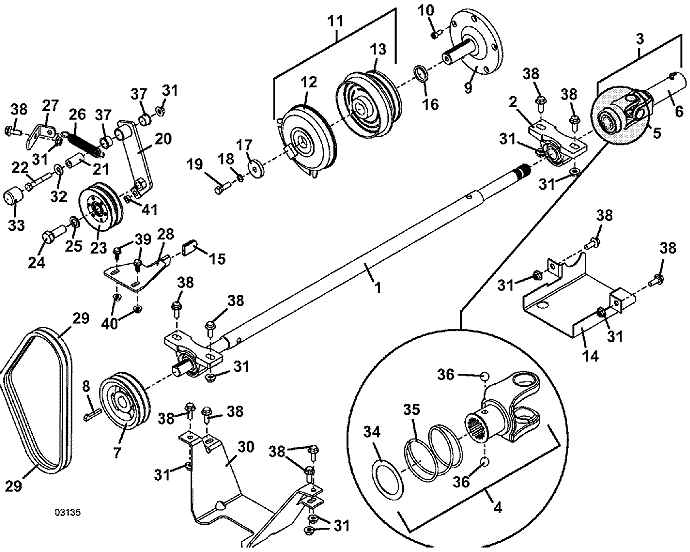

722D2 • PTO Shaft & Clutch Assembly

2006

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Power Shaft

644727

2

Pillowblock SC Bearing

122044

3

UN Half Sleeve

398914

4

QD Splined Yoke

401019

5

Cross Bearing

121010

6

Yoke w/Sleeve

401017

7

Sheave

415620

8

Gib Square Key

281588

9

Clutch Stub Shaft

824637

10

M8 Socket Head Screw

270075

11

Clutch Integral Plug

388769

12

Field Assembly w/Brake

388872

13

Armature & Rotor Assembly

388862

14

PTO Shaft Shield

729287

15

Clutch Bracket Cover

422088

16

Spacer

902583

17

Washer - Retainer

883803

18

Lock Washer

257412

19

Hex Bolt GR 8

243337

20

Idler Arm - PTO 928

824497

21

Pivot Shaft Bearing

881105

22

Hex Bolt

243355

23

Sheave

415610

24

Hex Bolt

243805

25

Washer Lock

257452

26

Spring Extension w/Swivel

283819

27

Idler Spring Bracket

732539

28

902D Anti-Rotation Bracket

755104

29

Belt

381914

30

700 Sheave Guard

725286

31

Whiz Nut

253043

32

Washer

257040

33

1.125 ID Vinyl Cap

422098

34

External Retainer

263660

35

Compression Spring

283525

36

Steel Ball

300014

37

Oilite Bearing

121756

38

Whiz Flange Bolt

253203

39

Hex Whiz Flange Bolt

253192

40

Whiz Nut

253035

41

Nylon Bearing

422520
