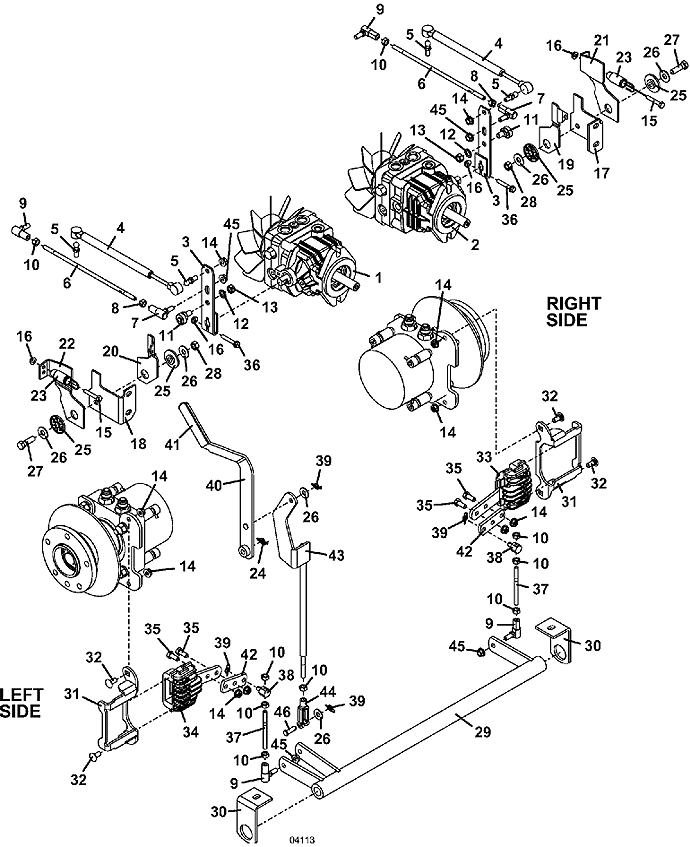

723KH2 • Drive Linkage Assembly

2005

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

H2 left Hydro Pump

391434

-

Seal

125165

-

Square Charge Cover Seal Ring

130020

2

H2 right Hydro Pump

391435

-

Seal

125165

-

Square Charge Cover Seal Ring

130020

3

right Pump Control Arm

725338

4

Damper

285031

5

Ball Stud

265680

6

Steering Linkage Pump Rod

780164

7

Lefthand Thread Ball Joint

265616

8

Nut

254444

9

Righthand Thread Ball Joint

265615

10

Nut

254441

11

Eccentric Roller Assembly

603726

12

Washer

257410

13

Nut

254450

14

Whiz Nut

253035

15

Hex Bolt

243035

16

Whiz Nut

253025

17

right Neutral Return Mount

754120

18

left Neutral Return Mount

754121

19

right Neutral Return Arm

729138

20

left Neutral Return Arm

729139

21

right Neutral Return Front Arm

729136

22

left Neutral Return Front Arm

729137

23

Extension Spring

283823

24

Cotter Ring

260608

25

Neutral Return Pivot Bearing

822304

26

Washer

257030

27

Hex Bolt

243335

28

Lock Nut

253890

29

Linkage Rod

644539

30

Brake Pivot Mount

732616

31

Brake Caliper Mount

644588

32

Carriage Bolt

247130

33

Clockwise Brake Caliper Assembly

481102

-

Brake Pad Kit

603150

34

Counter-Clockwise Brake Caliper Assembly

481103

-

Brake Pad Kit

603150

35

Hex bolt .312-18 x .750

243195

36

Hex Whiz Bolt

253182

37

Brake Linkage Rod

780158

38

.312 Brake Linkage Pin

880926

39

Cotter Ring

260606

40

700/900 Brake Lever

644035

41

Handle Grip

422150

42

700 Series Brake Strap

782851

43

Brake Linkage Arm

644036

44

Clevis Yoke

265537

45

Whiz Nut .312-24

253038

46

Clevis Pin

261284
