Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

725 • Hydraulic Lift Wiring

2002

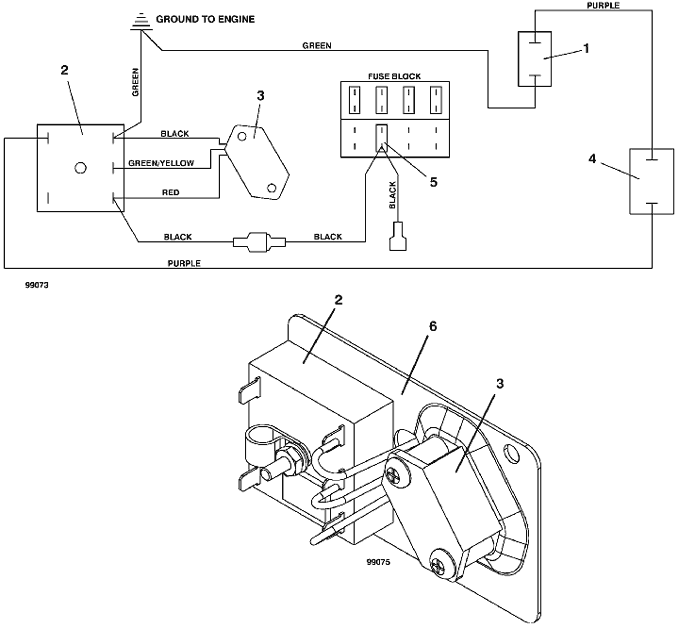

Hydraulic Lift Wiring

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Hydraulic Valve Solenoid

144950

2

Delay Timer

143374

3

Tilt Switch Assembly

183700

4

8-Way Connector Mount

184940

5

Auto ATC Fuse - 7.50

181460

6

Tilt Switch Magnetic Mount

722080
