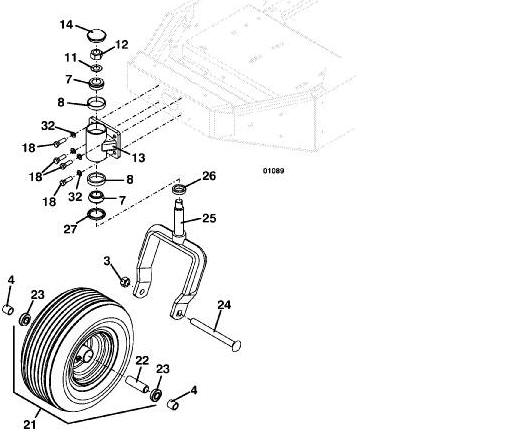

Item # |
Description |
Part Number |
| 3 |
NUT LOCK |
253970 |
| 4 |
SPACER AXEL |
902425 |
| 7 |
BEARING - TAPER |
122522 |
| 8 |
BEARING CUP |
123522 |
| 11 |
WASHER - 14 GA BUSHING |
257091 |
| 12 |
NUT LOCK |
253992 |
| 13 |
PIVOT HOUSING ASSY- RR FORK |
604596 |
| 14 |
DUST CAP - DOMED |
481434 |
| 18 |
HEX BOLT - GR 8 |
243334 |
| 21 |
WHEEL & TIRE W/BRG & SPCR 6 |
483865 |
| |
TIRE - RIB 6 |
482355 |
| |
WHEEL - 6 - TAN |
483306 |
| 22 |
SPACER - REAL WHEEL BRG |
902475 |
| 23 |
BEARING BALL |
120020 |
| 24 |
CARRIAGE BOLT |
247725 |
| 25 |
FORK & LOCK NUT ASSY |
604365 |
| 26 |
SPACER |
282615 |
| 27 |
SEAL |
125855 |
| 32 |
WASHER LOCK |
257412 |
