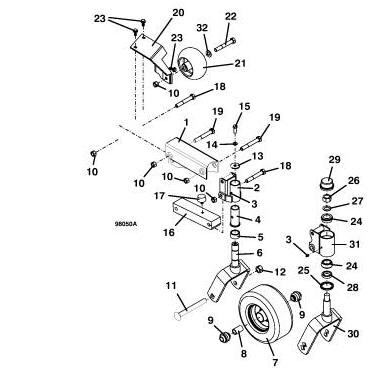

Item # |
Description |
Part Number |
| 1 |
LIFT CHANNEL - UPPER RT |
643500 |
| |
LIFT CHANNEL - UPPER LT |
643501 |
| 2 |
FORK MOUNT W/BEARING RT |
603351 |
| |
FORK MOUNT W/BEARING LT |
603352 |
| 3 |
FITTING GREASE |
280776 |
| 4 |
BUSHING - FLANGED SINTERED |
833260 |
| 5 |
SPACER |
902541 |
| 6 |
FORK - DECK 90 SERIES |
604350 |
| |
O-RING |
425514 |
| 7 |
WHEEL ASSY DK DP BRG SEMI-PNEU |
603973 |
| 8 |
SPACER - CENTER AXLE |
902428 |
| 9 |
BEARING - BALL DP WHEEL |
120048 |
| 10 |
NUT LOCK |
253930 |
| 11 |
CARRIAGE BOLT |
247715 |
| 12 |
NUT LOCK |
253970 |
| 13 |
WASHER |
774014 |
| 14 |
WASHER - LOCK |
257412 |
| 15 |
HEX BOLT |
243331 |
| 16 |
STABILIZER W/BUMPER - DECK |
822312 |
| 17 |
RUBBER BUMPER |
424052 |
| 18 |
HEX BOLT |
243609 |
| 19 |
HEX BOLT |
243614 |
| 20 |
ROLLER MT-ANTI SCALP 9561 |
284627 |
| 21 |
WHEEL - ANTI - SCALP OFFEST HUB |
484225 |
| 22 |
HEX BOLT |
243610 |
| 23 |
BOLT WHIZ HEX FLANGE |
253192 |
| |
NUT WHIZ |
253035 |
| 24 |
BEARING - TAPER |
122522 |
| 25 |
SEAL |
125855 |
| 26 |
NUT LOCK |
253992 |
| 27 |
WASHER - 14 GA BUSHING |
257091 |
| 28 |
SPACER |
282615 |
| 29 |
CAP - DUST |
481432 |
| 30 |
FORK - TAPERED BEARING |
644221 |
| 31 |
FORK HOUSING - DECK HD |
824982 |
| |
FORK HOUSING - MACHINED LT |
824981 |
| 32 |
WASHER |
257062 |
