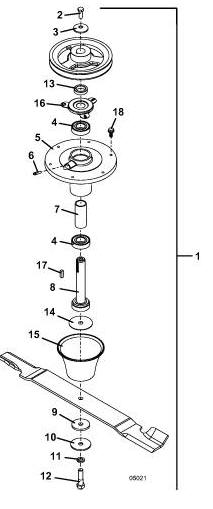

9772 Model Deck Blade Spindle Assembly - 2005
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart, call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 623764 - BLADE SPINDLE ASSY M172 LT/RT | Add To Cart | |
| 2 | 243331 - HEX BOLT | Add To Cart | |
| 3 | 257041 - WASHER - CUPPED | Add To Cart | |
| 4 | 110082 - BEARING - BALL SINGLE SEAL | Add To Cart | |
| 5 | 824150 - DEEP SPINDLE - MACHINED | Add To Cart | |
| 6 | 280745 - FITTING GREASE | Add To Cart | |
| 7 | 903643 - SPACER - BEARING DEEP SPINDLE | Add To Cart | |
| 8 | 604774 - SPINDLE - SHAFT ASSY 98S | Add To Cart | |
| 9 | 421200 - WASHER - FIBER | Add To Cart | |
| 10 | 257061 - WASHER | Add To Cart | |
| 11 | 257432 - WASHER - LOCK | Add To Cart | |
| 12 | 243581 - HEX BOLT | Add To Cart | |
| 13 | 282615 - SPACER | Add To Cart | |
| 14 | 772061 - WASHER | Add To Cart | |
| 15 | 423680 - DEFLECTOR CONE | Add To Cart | |
| 16 | 721167 - BEARING SHIELD | Add To Cart | |
| 17 | 281586 - KEY SQUARE | Add To Cart | |
| 18 | 253192 - BOLT WHIZ HEX FLANGE | Add To Cart |
