grasshopper

9772 Model Deck

Year Model: 2005

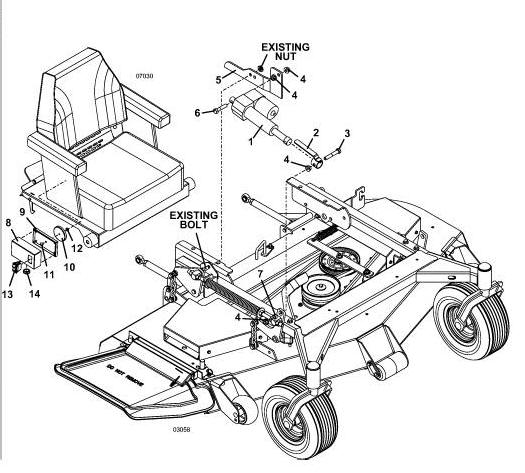

Electric Height Adjusting Kit Assembly


Click On The Part Number For Details

Item #

Description

Part Number

1 ACTUATOR 180024
2 INDICATOR- ELECTRIC DECK HT 644089
  DECAL-CUTTING HT M1 ELEC LIFT 162184
3 HEX BOLT 243600
4 NUT FLANGE 253065
5 ACTUATOR MOUNT - M1/9772 776414
6 HEX BOLT 243585
7 SPACER - ACTUATOR STOP 902282
8 SWITCH BOX - ACCESSORIES 644722
9 COVER PANEL - SWITCH BOX 721140
10 RUBBER BUMPER 424029
11 GROMMET 424216
12 STOP - THROTTLE LEVER 722009
13 MOUNT STRAP - SWITCH BOX 754005
14 SPACER - LATCH SPRING 902263
15 SPRING - COMPRESSION 283324
16 WASHER 257030
17 HEX BOLT 243220
18 MACHINE SCREW-HEX 250169
19 TOGGLE 184084
20 WASHER - KEYED 770005
