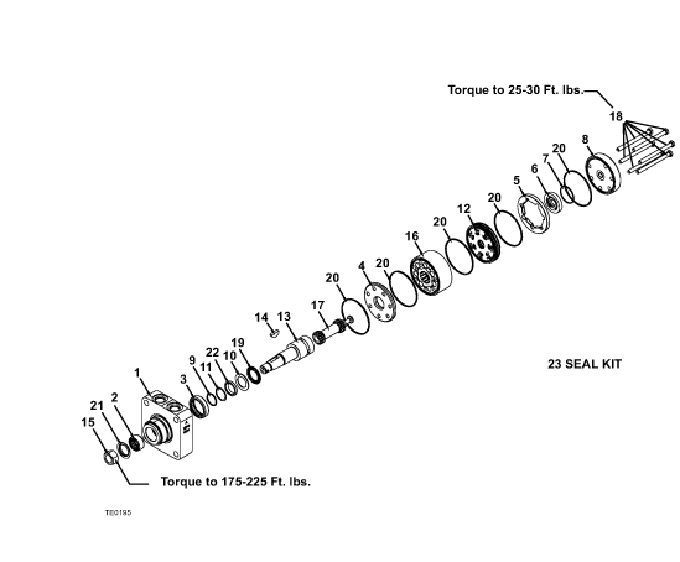

124 Wheel Motor Breakdown - 2007
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | Housing Assembly - NOT AVAILABLE | Unavailable | |
| 2 | 130368 - Outer Bearing | Add To Cart | |
| 3 | 130336 - Inner Bearing | Call For Details | |
| 4 | 130331 - Wear Plate | Call For Details | |
| 5 | Commutator Ring - NOT AVAILABLE | Unavailable | |
| 6 | Commutator - NOT AVAILABLE | Unavailable | |
| 7 | 130312 - (Hi-Temp) Commutator Seal | Add To Cart | |
| 8 | End Cover - NOT AVAILABLE | Unavailable | |
| 9 | 130303 - Back Up Ring | Call For Details | |
| 10 | 130347 - Thrust Washer | Call For Details | |
| 11 | 130304 - Back Up Washer | Call For Details | |
| 12 | Manifold - NOT AVAILABLE | Unavailable | |
| 13 | 130307 - Coupling Shaft | Call For Details | |
| 14 | 281845 - Key | Add To Cart | |
| 15 | 253992 - Nut | Add To Cart | |
| 16 | 130376 - Rotor Assembly | Call For Details | |
| 17 | 130313 - Drive Link | Call For Details | |
| 18 | Special Bolt - NOT AVAILABLE | Unavailable | |
| 19 | 130348 - Thrust Bearing | Call For Details | |
| 20 | 130390 - Seal Ring | Call For Details | |
| 21 | 130325 - Dirt & Water Seal | Add To Cart | |
| 22 | 130339 - Shaft Seal | Add To Cart | |
| 23 | 130388 - Seal Kit | Add To Cart |
