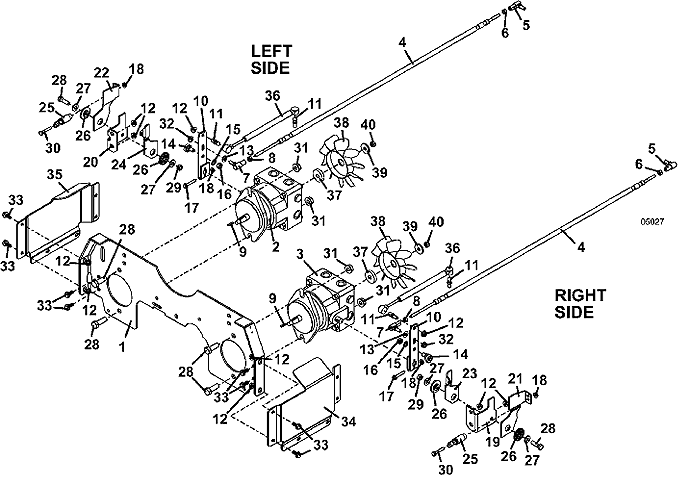

430D Drive Assembly - diagram 2 - 2010
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 644633 - 325/400 Pump Plate | Call For Details | |
| 2 | 391452 - left Hydro Pump | Add To Cart | |
| 3 | 391453 - right Hydro Pump | Add To Cart | |
| 4 | 604526 - 400S Steering Linkage Rod | Add To Cart | |
| 5 | 265615 - Righthand Thread Ball Joint | Add To Cart | |
| 6 | 254441 - Nut | Add To Cart | |
| 7 | 265616 - Lefthand Thread Ball Joint | Add To Cart | |
| 8 | 254444 - Nut | Add To Cart | |
| 9 | 281562 - Rectangle Key | Add To Cart | |
| 10 | 725338 - Control Arm | Add To Cart | |
| 11 | 265680 - Ball Stud | Add To Cart | |
| 12 | 253035 - Whiz Nut | Add To Cart | |
| 13 | 257020 - Washer | Add To Cart | |
| 14 | 603726 - Eccentric Roller Assembly | Add To Cart | |
| 15 | 257410 - External Star Washer | Add To Cart | |
| 16 | 254450 - Nut | Add To Cart | |
| 17 | 253182 - Hex Whiz Bolt | Add To Cart | |
| 18 | 253025 - Whiz Nut | Add To Cart | |
| 19 | 729225 - 21L right Neutral Return Mount | Add To Cart | |
| 20 | 729229 - 21L left Neutral Return Mount | Add To Cart | |
| 21 | 729136 - right Neutral Return Front Arm | Add To Cart | |
| 22 | 729137 - left Neutral Return Front Arm | Add To Cart | |
| 23 | 729138 - right Neutral Return Arm | Add To Cart | |
| 24 | 729139 - left Neutral Return Arm | Add To Cart | |
| 25 | 283823 - Extension Spring | Add To Cart | |
| 26 | 822304 - Neutral Return Pivot Bearing | Add To Cart | |
| 27 | 257030 - Washer | Add To Cart | |
| 28 | 243335 - Hex Bolt | Add To Cart | |
| 29 | 253890 - Lock Nut | Add To Cart | |
| 30 | 243035 - Hex Bolt | Add To Cart | |
| 31 | 253066 - Whiz Nut | Add To Cart | |
| 32 | 253038 - Whiz Nut | Add To Cart | |
| 33 | 253192 - Hex Flange Whiz Bolt | Add To Cart | |
| 34 | 754155 - 400 Series right Rein Plate | Add To Cart | |
| 35 | 754156 - 400 Series left Rein Plate | Call For Details | |
| 36 | 285031 - Damper | Add To Cart | |
| 37 | 885123 - 10A Fan Mount Hub | Add To Cart | |
| 38 | 320857 - 7 inch Clockwise Nylon Fan | Add To Cart | |
| 39 | 774020 - Washer | Add To Cart | |
| 40 | 254452 - Nut | Add To Cart |
