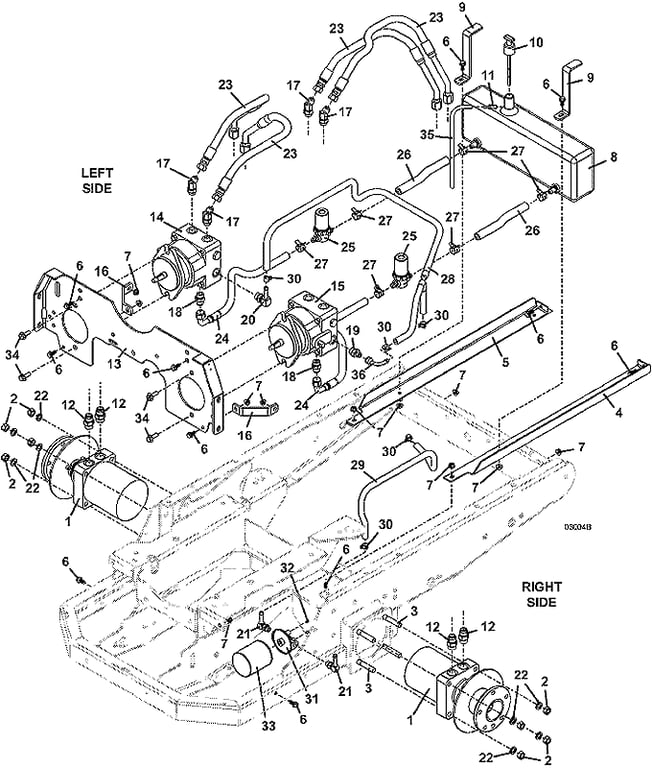

430D Reservoir & Hose Assembly - 2010
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 603604 - Wheel Motor with Hub | Add To Cart | |
| 2 | 254470 - Nut | Add To Cart | |
| 3 | 243597 - Diamond Head Bolt | Add To Cart | |
| 4 | 754092 - 400 right Tank Rail | Call For Details | |
| 5 | 754093 - 400 left Tank Rail | Call For Details | |
| 6 | 253192 - Hex Flange Whiz Bolt | Add To Cart | |
| 7 | 253035 - Whiz Nut | Add To Cart | |
| 8 | 603606 - M1 325/400 Oil Reservoir Assembly | Add To Cart | |
| - | 101875 - Grommet | Add To Cart | |
| - | 101880 - Grommet | Add To Cart | |
| - | 360058 - Straight Fitting | Add To Cart | |
| - | 363638 - 90 degree Fitting | Add To Cart | |
| 9 | 732557 - M1 Oil Tank Strap | Call For Details | |
| 10 | 100728 - M1 Oil Reservoir Dipstick | Add To Cart | |
| 11 | 363826 - Straight Barbed Fitting | Add To Cart | |
| 12 | 360069 - Adapter Fitting | Add To Cart | |
| - | 126537 - O Ring | Add To Cart | |
| - | 126529 - O Ring | Add To Cart | |
| 13 | 644633 - 325/400 Pump Plate | Call For Details | |
| 14 | 391452 - left Hydro Pump | Add To Cart | |
| 15 | 391453 - right Hydro Pump | Add To Cart | |
| 16 | 732882 - Pump Plate Rein Strap | Add To Cart | |
| 17 | 360046 - Adapter Fitting | Add To Cart | |
| - | 126527 - O Ring | Add To Cart | |
| - | 126535 - O Ring | Add To Cart | |
| 18 | 363832 - Steel O Ring Boss Fitting | Add To Cart | |
| 19 | 360080 - O-Ring Flare Adapter Fitting | Add To Cart | |
| 20 | 360062 - Adapter | Call For Details | |
| 21 | 360056 - Adapter | Add To Cart | |
| 22 | 257432 - Lock Washer | Add To Cart | |
| 23 | 424377 - Hose Assembly | Add To Cart | |
| 24 | 424321 - Hose Assembly | Add To Cart | |
| 25 | 366553 - In-Line Strainer | Add To Cart | |
| 26 | 821796 - Hydraulic Hose | Add To Cart | |
| 27 | 280266 - Spring Hose Clamp | Add To Cart | |
| 28 | 424315 - Hose Assembly | Add To Cart | |
| 29 | 821787 - Hydraulic Hose | Add To Cart | |
| 30 | 280264 - Spring Hose Clamp | Add To Cart | |
| 31 | 101024 - M1 Series Filter Base | Add To Cart | |
| 32 | 253173 - Hex Whiz Bolt | Add To Cart | |
| 33 | 100855 - High-Efficiency Transaxle Oil Filter | Add To Cart | |
| 34 | 243570 - Hex Bolt | Add To Cart | |
| 35 | 821724 - Clear Vent Hose | Add To Cart | |
| 36 | 363846 - Fitting | Add To Cart |
