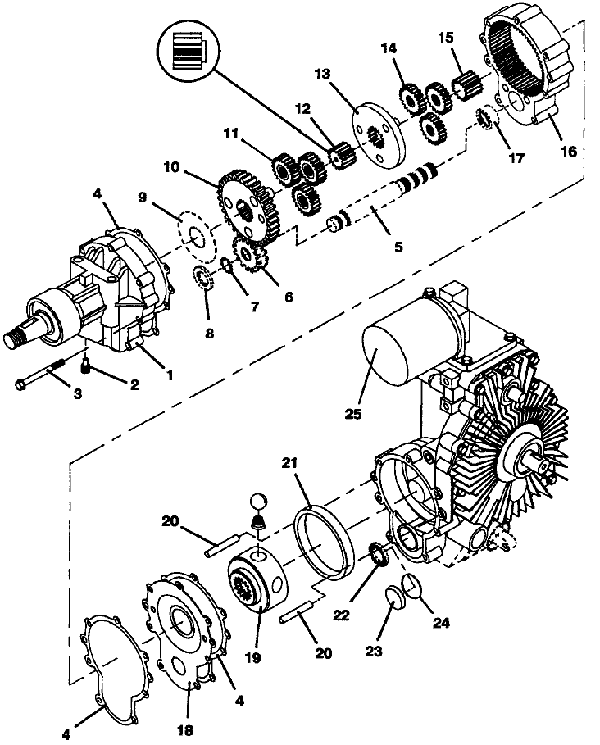

Transmissions Gemini 770 Series - Final Drive Assembly
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 391700 - Axle Housing | Add To Cart | |
| 2 | 365509 - Magnetic Plug | Add To Cart | |
| 3 | 250522 - Machine Screw | Add To Cart | |
| 4 | 420340 - Axle Housing Gasket | Add To Cart | |
| 5 | 393505 - Shaft .750 | Add To Cart | |
| 6 | 392820 - Brake Gear | Add To Cart | |
| 7 | 263522 - External Retainer | Call For Details | |
| 8 | 282626 - Spacer | Call For Details | |
| 9 | 257113 - Washer | Call For Details | |
| 10 | 392801 - Secondary Carrier 90/91 | Add To Cart | |
| - | 392804 - Secondary Carrier 88/89 | Call For Details | |
| 11 | 392826 - Secondary Planetary Gear | Add To Cart | |
| - | 392827 - Secondary Planetary Gear | Call For Details | |
| 12 | 392833 - Secondary Sun Gear - Finished Bore | Add To Cart | |
| - | 392832 - Secondary Sun Gear | Add To Cart | |
| 13 | 392800 - Primary Carrier | Call For Details | |
| 14 | 392825 - Primary Planetary Gear | Add To Cart | |
| 15 | 392830 - Primary Planetary Gear | Add To Cart | |
| 16 | 392835 - Ring Gear | Call For Details | |
| 17 | 121583 - Needle Bearing .750 x 1.00 x .5 | Add To Cart | |
| 18 | 103742 - Wear Plate | Call For Details | |
| 19 | 103775 - Motor Rotor | Add To Cart | |
| 20 | 103744 - Dowel .278 | Add To Cart | |
| 21 | 123758 - Cup Bearing | Add To Cart | |
| 22 | 125260 - Seal | Add To Cart | |
| 23 | not available | Unavailable | |
| 24 | 126544 - O Ring .926 ID x 1.0625 x .0625 | Add To Cart | |
| 25 | 100850 - Transaxle Oil Filter | Add To Cart | |
| - | 603605 - Oil Filter Gasket Assembly | Add To Cart |
