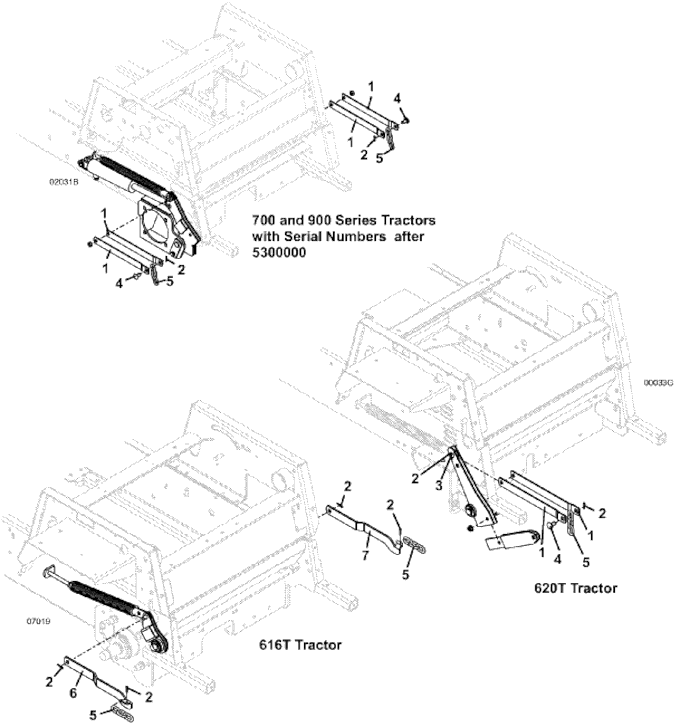

Genuine OEM Grasshopper® Mower Parts Diagrams
3452/3461 Front Mount Decks • Traction Kit Adapter
2013
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
Strap - Lift 600 W/Sl Deck |
732410 |
2 |
Cotter Pin |
260648 |
3 |
Clevis Pin |
261339 |
4 |
Clevis Pin |
261336 |
5 |
Chain - Lift 3 Links |
820317 |
6 |
Strap - Lift - 616T Rt |
725492 |
7 |
Strap - Lift - 616T Lt |
725493 |
