Genuine OEM Grasshopper Lawn Mower Parts

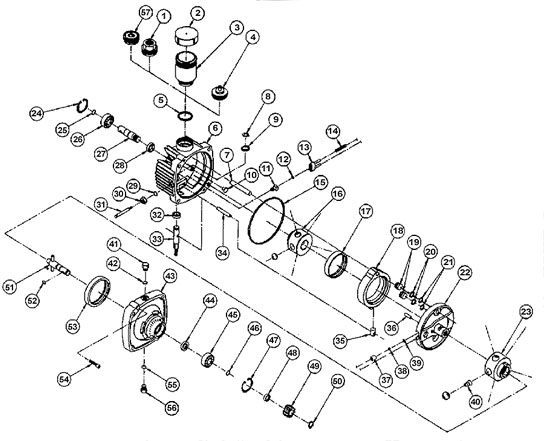

Genuine OEM Grasshopper® Mower Parts Diagrams

Transmissions

Model 6 & 7 Chain Drive

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

No Longer Available

000000

2

Reservoir Cap & Gasket

422001

3

Reservoir Hydro

422005

4

Reservoir Adapter

422010

5

Reservoir to Hydro Gasket

420350

6

Cover Service Kit with Seal & Bushing

103755

-

Cover Service Kit - new

103765

7

No Longer Available

000000

8

External Retainer

263515

9

Pump Cover Gasket

420341

10

No Longer Available

000000

11

O-Ring Fit Guide S/A

103760

12

O-Ring .250 ID x .375 OD x .062

126520

13

No Longer Available

000000

14

No Longer Available

000000

15

Square Cut Seal Ring

126704

16

Pump Rotor

103758

17

Cup Bearing

123755

18

Cam Ring

103754

19

No Longer Available

000000

20

Backup Ring .549 ID

126632

21

O-Ring .549 ID x .755 OD x .103

126532

22

No Longer Available

000000

23

Motor Rotor

103756

24

Internal Retainer

263175

25

External Retainer

263518

26

Ball Bearing .670 x 1.575

120054

27

Input Shaft

103751

28

Seal

125250

29

O-Ring .437 ID x .062

126526

30

Dump Valve Jamb Nut

830335

31

Dump Valve Shaft

103753

32

Seal

125170

33

Control Shaft with Dowel

103752

34

No Longer Available

000000

35

No Longer Available

000000

36

No Longer Available

000000

37

Check Valve Body

103700

38

Steel Ball

300035

39

No Longer Available

000000

40

No Longer Available

000000

41

O-Ring Plug S/A

103762

42

O-Ring .468 ID x .078

126528

43

No Longer Available

000000

44

Seal

125250

45

Ball Bearing .670 x 1.575

120054

46

External Retainer

263518

47

Internal Retainer

263175

48

No Longer Available

000000

49

No Longer Available

000000

50

No Longer Available

000000

51

Output Shaft

103750

52

Woodruff Key .125 x .50

281823

53

Cup Bearing

123770

54

No Longer Available

000000

55

No Longer Available

000000

56

O-Ring Plug S/A

103762

57

No Longer Available

000000
