Genuine OEM Grasshopper® Mower Parts Diagrams

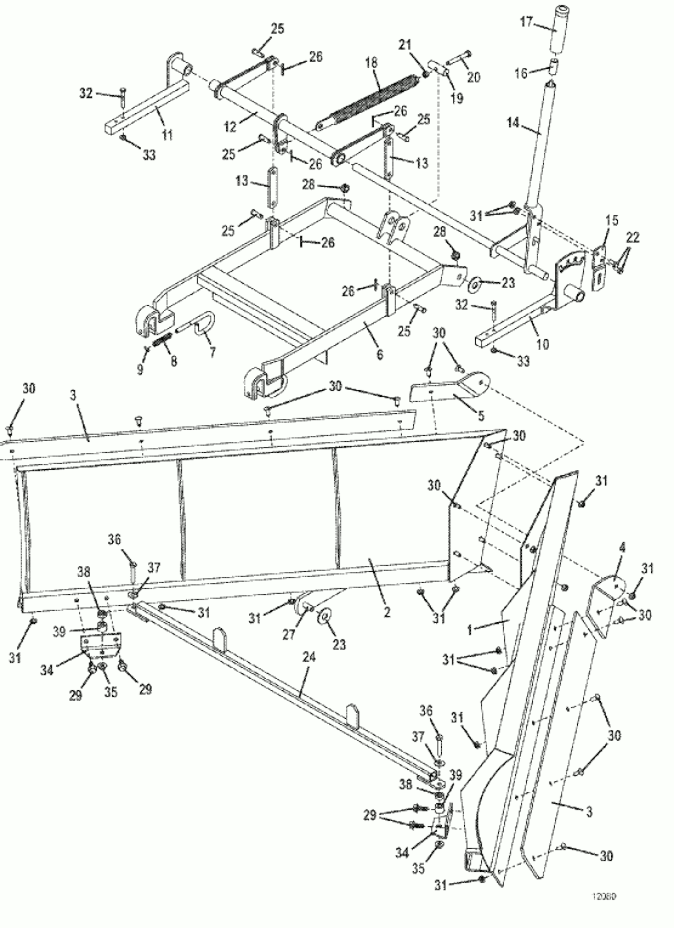

Quick Detach Dozer Blade Assembly

V-Dozer Assembly
Click On The Part Number For Details

Item #

Description

Part Number

-

Complete V-Dozer Snow Plow Assembly

533488

1

V-Dozer Right

644820

2

V-Dozer Left

644821

3

V-Dozer Blade

783289

4

V-Dozer Nose Right Plate

726223

5

V-Dozer Nose Left Plate

726224

6

V-Dozer Mount Assembly

603294

7

Deck Mount Latch Pin

730433

8

Compression Spring

283285

9

External Retainer

263490

10

V-Dozer Lever Mount

644465

11

V-Dozer Left Lift Mount

644510

12

Dozer Lift W/A

644210

13

Vertical Lift Strap

782869

14

V-Dozer Thumb Release Lift

644514

15

Guide Lever

732593

16

Thumb Button Push Rod

821675

17

Grip - Handle Thumb Release

833540

18

Spring & Plug Nut Assembly

604762

19

Spring Mount Shaft

881108

20

Bolt

243361

21

Nut

254450

22

Hex Bolt

243195

23

Washer

257080

24

Rear Brace

644103

25

Clevis Pin

261340

26

Cotter Pin

260652

27

Hex Bolt

243570

28

Lock Nut

253930

29

Whiz Bolt

253202

30

Carriage Bolt

247130

31

Whiz Nut

253035

32

Hex Bolt

243040

33

Whiz Nut

253025

34

V-Dozer Mount Bracket

725011

35

Whiz Nut

253043

36

Hex Bolt

243347

37

Washer

257040

38

Coupling Spacer

902318

39

G2 Drive Spacer

902328
