Kohler Engines logo

Air & Oil Filters, Oil, & Tune-Up Kits

The Mower Shop stocks a full line of Kohler Engine parts.
Please call for assistance with these parts.

NOTE: If the part number you require is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

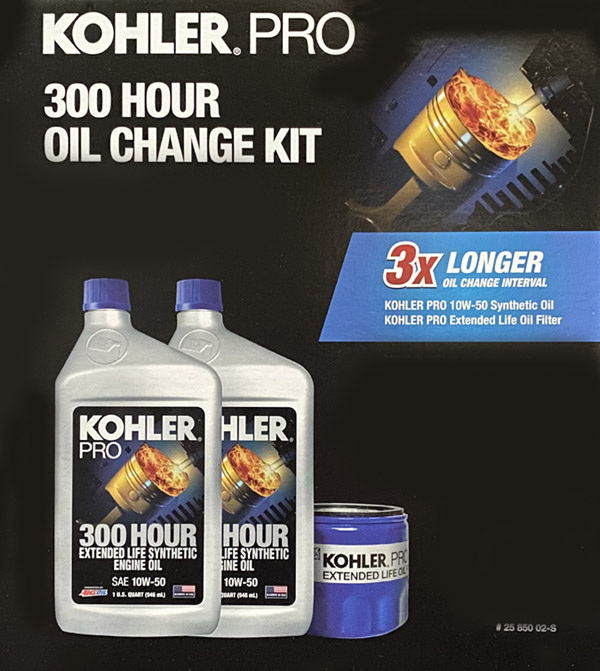

KOHLER® PRO EXTENDED LIFE 300 HOUR OIL CHANGE KIT

EACH KIT INCLUDES:
2 Quarts 10W-50 Extended Life Synthetic Oil
1 Extended Life Oil Filter

Oil Change Kit for all Grasshopper Mowers with Kohler Engines
part# 25 850 02-S      tap/click here for price
Kohler Oill Change Kit 2585002

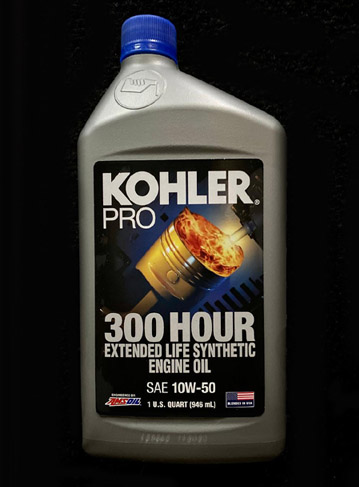

1 Quart 10W-50 Extended Life Synthetic Oil
part# 25 357 72-S      tap/click here for price
Kohler 300 Hour Synthetic Oil 25 557 72-s

KOHLER® COMPLETE TUNE-UP / MAINTENANCE KITS

EACH KIT INCLUDES:
2 Spark Plugs    2 Quarts Oil    Oil Filter    Air Filter    Fuel Filter

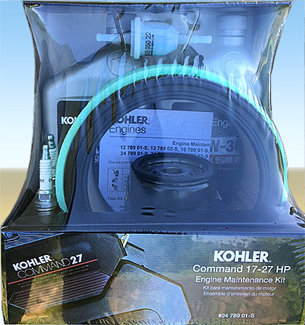

Tune-Up / Maintenance Kit for Command 17-27 HP
part# 24 789 01-S      tap/click here for price
Kohler Maintenance Kit 24 789 01-s

Fits Engine Models:
CV 17    CV 23    CV 724    CV 740    CH 18    CH 25    CH 730    CH 740
Includes the following:
Air Filter: 47 083 03-S
Pre Filter: 24 083 02-S
Fuel Filter: 25 050 22-S
Oil Filter: 52 050 02-S
2 U.S. Quarts of Oil 10W30 (Kohler 25 357 06-S)
2 Spark Plugs RC12YC

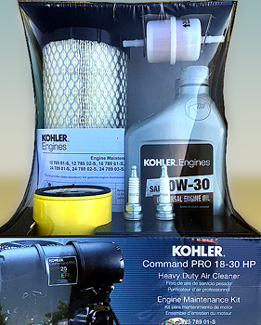

Tune-Up / Maintenance Kit for Command Pro 18-30 HP
part# 25 789 01-S      tap/click here for price
Kohler Maintenance Kit 25 789 01-s

Fits Engine Models:
CV/CH 18/25    CV/CH 620/621    ECH/ECV 630/650    CV/CH 640/641    CV/CH 670
CV/CH/ECH/ECV 680/682    CH/CV/ECH/ECV 730/732
   CH/CV/ECH/ECV 740/742/745/749    CH/CV 750/752
CH/CV/ECH/ECV 940    CH 960    CH/CV/ECH/ECV 980
ECH 630    ECH 749
Includes the following:
Air Filter: 25 083 01-S
Fuel Filter: 24 050 13-S
Oil Filter: 52 050 02-S
2 U.S. Quarts of Oil 10W30 (Kohler 25 357 06-S)
2 Spark Plugs RC12YC

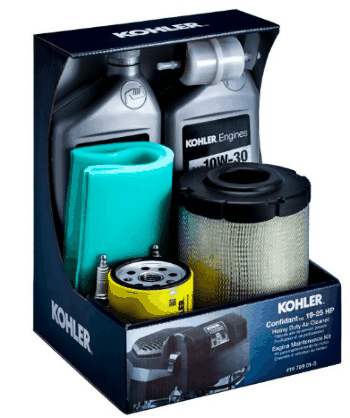

Tune-Up / Maintenance Kit for Confidant Pro 19-25 HP
Part# 16 789 01-S      tap/click here for price
Kohler Maintenance Kit 16 789 01-s

Fits Engine Models:
KT/ZT 710    KT/EZT 715    KT/ZT 720    KT/EZT 725
KT/ZT 730    KT/ZT/EZT 740    KT/EZT 750
Includes the following:
Air Filter: 16 083 01-S
Pre Cleaner: 16 083 02-S
Fuel Filter: 24 050 13-S
Oil Filter: 52 050 02-S
2 U.S. Quarts of Oil 10W30 (Kohler 25 357 06-S)
2 Spark Plugs RC12YC

KOHLER® ENGINES - FILTERS & PARTS

Air Filters

1208305s   -   Air filter element w/ seal kit

235116s   -   Filter Element

4708301s   -   Filter Element

4788303s1   -   Air Filter

2588303s1   -   Air Filter

2488303s1   -   Air Filter

2508304s   -   Inner Air Filter

2508301s   -   Main Heavy Duty Air Filter System

2508302s   -   Air Filter primary (main filter for heavy duty kit)

4708303s   -   Standard Air filter fits 218 & 220's 2004 or older

2408302s   -   Wrapper/Pre-cleaner for filter #4708303s

237421s   -   Pre-Cleaner

2408305s   -   Pre-Cleaner


2808303s   -   Air filter element kit (use pre filter 2808302s, below)

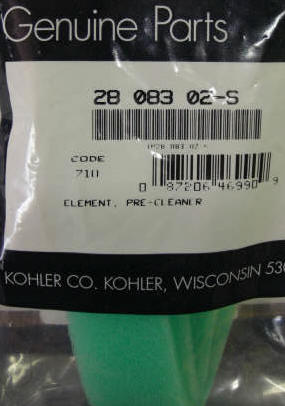

2808302s   -   Pre filter

Kohler 2808302S


Oil Filters

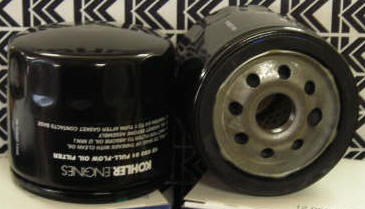

Kohler 1205001S

12-050-01S  -   Oil Filter - Heavy Duty 723 & smaller 223 & smaller

Kohler 5205002S

52-050-02S   -    Oil Filter for 25hp or larger


Fuel Filters

25-050-22S   -   Fuel Filter


Spark Plugs

Q16PRU11   -   Spark Plug
