click on a part number below for price and to order

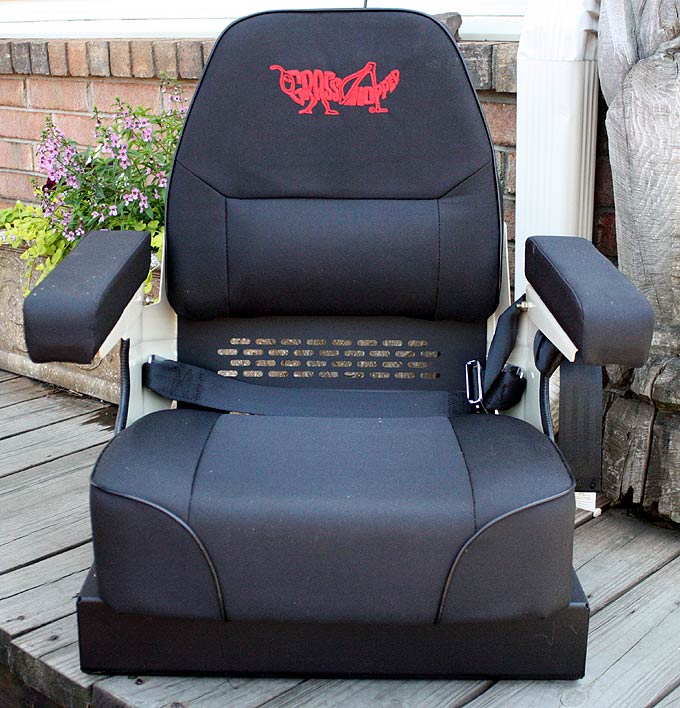

504652 - Complete Seat Assembly with Pan, for 700 & 900 series models
504655 - Complete Seat Assembly with Pan, for 218, 220, 223, 227, 329, & 335 models
504655 This seal will fit any 200/300 Series M1.
504657 - Complete Seat assembly with Pan, for 328 VG Series
504656 - Complete Seat Assembly with Pan, for 300, 400 M1 Series liquid-cooled models
(Excluding Vertical Engine 200/300 Series. The Engine Pan is different.)
Complete assembly (as shown), includes Mount Plate. In the box and ready to ship.
depending on your Grasshopper Mower's model number and age, use of your unit's original mount plate may be necessary.
OPTIONAL ACCESSORIES for BIG & TALL OPERATORS
503928 - Big Boy Wide Seat Conversion, with Foldable Armrests
503707 - Tall Boy QuikAdjust Levers (2 inches taller)
503708 - Tall Boy QuikAdjust Levers, with Hydraulic Switch in Right Lever
503713 - Standard Tall Boy Levers (2 inches taller)
100/200 V Series SEAT FRAME UPDATE
503698 - Series 100/200 Seat Frame Update
Includes fold-up arm rest brackets, adjustable sliding seat frame, and embroidered Cordura seat back with Grasshopper logo.
Does not include seat bottom or foam arm rests. This upgrade provides the operator easy access to the deck height pedal while seated,
and the folding arm rest brackets allow faster, more convenient entry and exit.
