Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

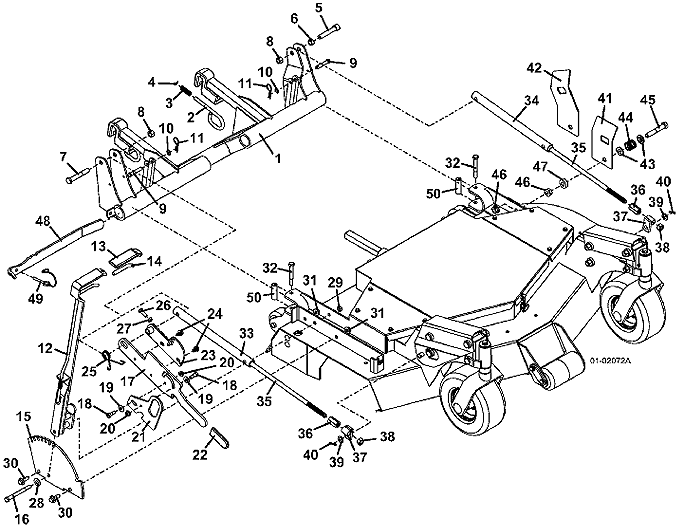

3344 / 3348 Decks • Lift Arm & Linkage Assembly

2003

Lift Arm Linkage Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

3344 LIFT ARM ASSEMBLY

604543

-

3348 LIFT ARM ASSEMBLY

604546

2

DECK MOUNT LATCH PIN

730433

3

COMPRESSION SPRING

283285

4

EXTERNAL RETAINER

263490

5

SOCKET HEAD SCREW

259640

6

ACTUATOR STOP SPACER

902282

7

GR5 HEX BOLT .500- X 3.312

243609

8

LOCK NUT .500-13

253930

9

CLEVIS PIN .375 X 2GR5

261362

10

PUSH-ON RETAINER

262950

11

HAIR PIN

260523

12

33 SERIES DECK LIFT LEVER

644475

13

HANDLE GRIP

422155

14

HANDLE GRIP

422158

15

L48 LEVER MOUNT

726037

-

33 & 34 series CUTTING HEIGHT DECAL

162188

16

HEX BOLT

243385

17

33 series LIFT CONNECTING ARM F/A

824174

18

SHOULDER BOLT

259722

19

WASHER

257030

20

WHIZ NUT

253035

21

L48 CONNECTING ARM LATCH

783063

22

BLACK HANDLE GRIP

422153

23

LIFT LINKAGE ADJUSTMENT BRACKET

824566

24

WHIZ BOLT

253189

25

TORSION SPRING

284423

26

HEX BOLT

243205

27

WASHER

254440

28

WASHER

257040

29

LOCK NUT

253890

30

FLANGE WHIZ BOLT

253203

31

WHIZ NUT

253043

32

HEX BOLT

243365

-

LOCK NUT

253890

33

3344 right LIFT TUBE

644448

-

3348 right LIFT TUBE

644455

34

3344 left LIFT TUBE

644449

-

3348 left LIFT TUBE

644456

35

ROUND HEAD BOLT

243670

36

HEIGHT ADJUSTMENT SLEEVE NUT

321185

37

33 series LIFT ROD BRACKET

644072

38

NUT

254470

39

WASHER

257063

40

COTTER PIN

260650

41

L48 DECK LATCH

729169

42

DECK LATCH for 33 series with BLOWER

729231

43

WASHER

257067

44

COMPRESSION SPRING

283332

45

HEX WHIZ BOLT

243600

46

SPIRAL FLANGE LOCK NUT

253067

47

TILT LATCH SPACER

902292

48

STANDARD TRACTION KIT TOOL

783068

49

LINCH PIN

261624

50

ROLLER MOUNT SPACER

902284
