Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

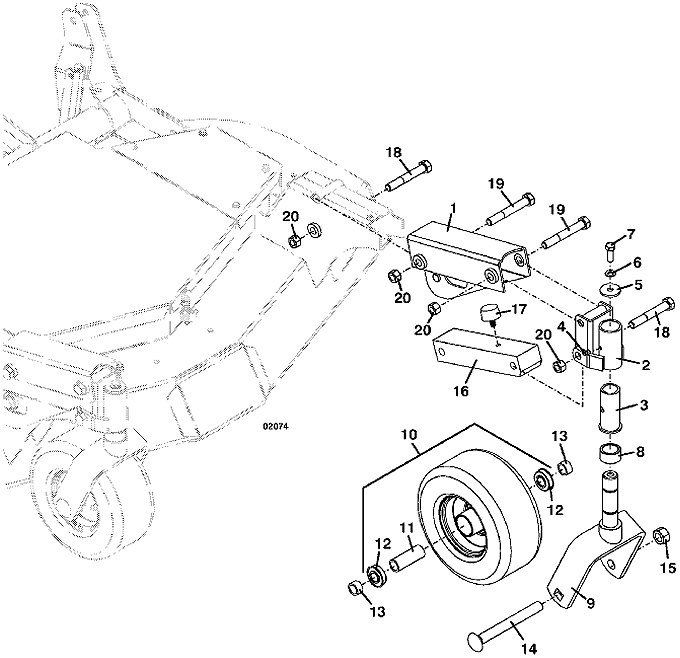

3344 / 3348 Front Mount Decks • Wheel Lift Assembly

2005

Wheel Lift Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

33/34 Series Right Lift Channel

644461

-

33/34 Series Left Lift Channel

644462

2

Right Fork Mount with Bearing

603351

-

Left Fork Mount with Bearing

603352

3

Flanged Sintered Bushing

833260

4

Zerk Grease Fitting

280776

5

Washer

774014

6

Lock Washer

257412

7

Hex Bolt

243331

8

Spacer

902541

9

90 series Deck Fork

604350

-

O-Ring

425514

10

Semi-Pneumatic Wheel Assembly 9 x 3.5 x 4

603971

11

Deck Wheel Bearing Spacer

902473

12

Ball Bearing

120050

13

Axle Spacer

902415

14

Carriage Bolt

247715

15

Lock Nut

253970

16

Deck Stabilizer with Bumper

822312

17

Rubber Bumper

424052

18

Hex Bolt

243609

19

Hex Bolt

243614

20

Lock Nut

253930
