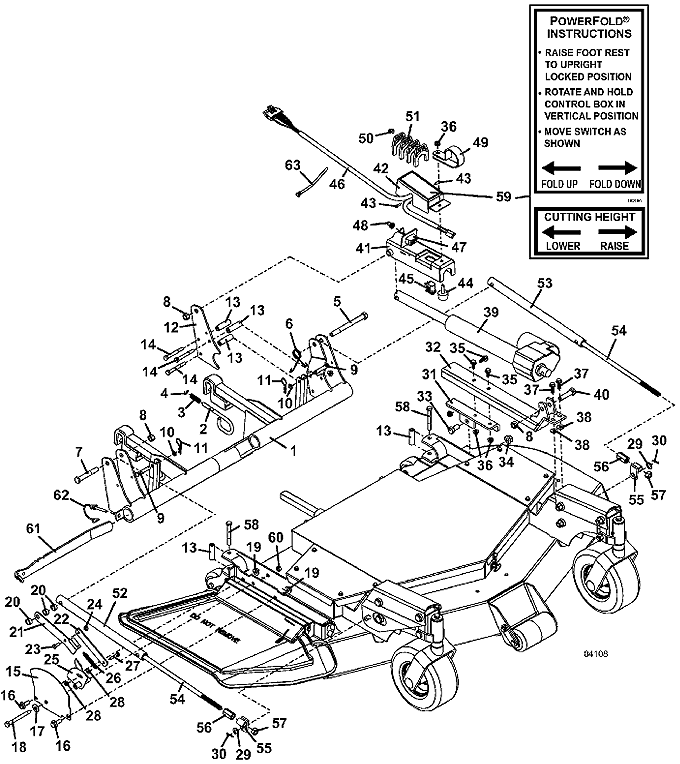

Item # |
Description |
Part Number |
| 1 |
LIFT ARM ASSY - 3348 |
604546 |
| 2 |
LATCH PIN - DECK MOUNT |
730433 |
| 3 |
SPRING - COMPRESSION |
283285 |
| 4 |
RETAINER EXTERNAL |
263490 |
| 5 |
HEX BOLT |
243635 |
| 6 |
SPRING - TORSION |
284423 |
| 7 |
HEX BOLT |
243609 |
| 8 |
NUT - LOCK |
253930 |
| 9 |
CLEVIS PIN |
261362 |
| 10 |
RETAINER PUSH-ON |
262950 |
| 11 |
HAIR PIN |
260523 |
| 12 |
BRACKET-LIFT TUBE PWERFLD 3348 |
776079 |
| 13 |
SPACER - ROLLER MOUNT |
902284 |
| 14 |
HEX BOLT |
243240 |
| 15 |
PLATE - CUTTING HEIGHT DECAL |
773141 |
| 16 |
BOLT WHIZ FLANGE |
253203 |
| 17 |
WASHER |
257040 |
| 18 |
HEX BOLT |
243385 |
| 19 |
NUT - WHIZ |
253043 |
| 20 |
SPACER - ACTUATOR STOP |
902282 |
| 21 |
LINKAGE-INDICATOR ELEC LIFT |
729332 |
| 22 |
STRAP-INDICATOR ELECTRIC LIFT |
729331 |
| 23 |
HEX BOLT |
243018 |
| 24 |
NUT - INSERT-NYLON |
253440 |
| 25 |
HEIGHT INDICATOR - E/LIFT |
644319 |
| 26 |
SPRING - EXTENSION |
283762 |
| 27 |
HEX BOLT |
243030 |
| 28 |
NUT - WHIZ |
253025 |
| 29 |
WASHER |
257063 |
| 30 |
COTTER PIN |
260650 |
| 31 |
BRACKET - ACTUATOR MOUNT 3348 |
726034 |
| 32 |
ACTUATOR MOUNT -POWERFOLD 3348 |
644061 |
| 33 |
HEX BOLT |
243560 |
| 34 |
NUT - WHIZ |
253066 |
| 35 |
BOLT WHIZ HEX FLANGE |
253192 |
| 36 |
NUT - WHIZ |
253035 |
| 37 |
BOLT WHIZ HEX FLANGE |
253193 |
| 38 |
WASHER |
257030 |
| 39 |
ACTUATOR 12V |
180035 |
| |
MOTOR - ELECTRIC |
182540 |
| 40 |
HEX BOLT |
243580 |
| 41 |
MOUNT - ELECTRIC LIFT SWITCH |
644805 |
| 42 |
SHIELD - SWITCH MOUNT ELEC LIFT |
722005 |
| 43 |
MACHINE SCREW-HEX |
250169 |
| 44 |
BUMPER - W/STUD |
424056 |
| 45 |
SWITCH-SNAP MT PLUNGER SPST NC |
183867 |
| 46 |
WIRING ASSY DECK TILT/HGT ADJ |
605945 |
| 47 |
TOGGLE |
184084 |
| |
BOOT - TOGGLE SWITCH |
425200 |
| |
WASHER - KEYED |
770005 |
| 48 |
BOOT - TOGGLE SWITCH |
424500 |
| 49 |
WASHER - KEYED |
732315 |
| 50 |
SPACER - .25 THK |
902297 |
| 51 |
SPACER - POWERFOLD HEIGHT ADJ |
423697 |
| 52 |
LIFT TUBE 3348RT |
644455 |
| 53 |
LIFT TUBE - 3348 LT |
644456 |
| 54 |
ROUND HEAD BOLT |
243670 |
| 55 |
BRACKET - LIFTROD - 33 SERIES |
644072 |
| 56 |
SLEEVE NUT - HEIGHT ADJUSTMENT |
321185 |
| 57 |
NUT |
254470 |
| 58 |
HEX BOLT |
243365 |
| |
NUT - LOCK |
253890 |
| 59 |
DECAL - POWERFOLD INSTRUCTION |
162160 |
| 60 |
NUT - LOCK |
253890 |
| 61 |
TRACTION KIT TOOL - L48 |
783068 |
| 62 |
LINCH PIN |
261624 |
| 63 |
WIRE TIE - RELEASABLE |
423149 |
