Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

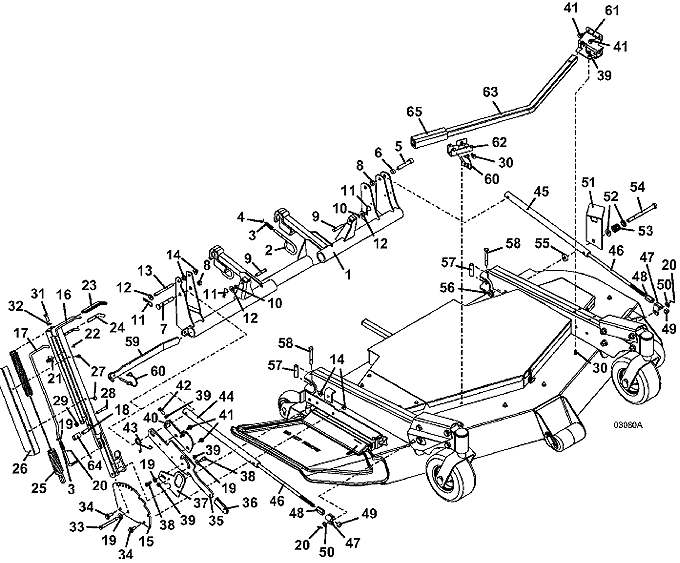

3452 / 3461 Decks • Lift Arm & Linkage Assembly

2004

Lift Arm Linkage Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

3452 LIFT ARM ASSEMBLY

604547

-

3461 LIFT ARM ASSEMBLY

604549

2

DECK MOUNT LATCH PIN

730433

3

COMPRESSION SPRING

283285

4

EXTERNAL RETAINER

263490

5

SOCKET HEAD SCREW

259640

6

ACTUATOR STOP SPACER

902282

7

GR5 HEX BOLT .500- X 3.312

243609

8

LOCK NUT .500-13

253930

9

CLEVIS PIN .375 X 2GR5

261362

10

PUSH-ON RETAINER

262950

11

HAIR PIN

260523

12

WASHER

257040

13

DRILLED STUD

830037

14

WHIZ NUT .375-16

253043

15

3461 LEVER MOUNT

726036

-

33 & 34 series CUTTING HEIGHT DECAL

162188

16

3452 / 3461 LIFT LEVER

824578

17

ASSIST LEVER ROD

730375

18

LIFT LEVER BOLT SLEEVE

902273

19

WASHER

257030

20

COTTER PIN

260650

21

ROD RETAINER

423110

22

#8 SCREW

252041

23

HANDLE GRIP

422155

24

HANDLE GRIP

422158

25

LIFT ASSIST SPRING ASSEMBLY

604518

26

SPRING ASSIST LEVER SHIELD

722716

27

HEX WHIZ BOLT .250-20 X .500

253173

28

HEX BOLT .312-18 X 2

243225

29

NYLON INSERT NUT .312-18

253450

34

FLANGE WHIZ BOLT .375-16 X 1

253203

35

CONNECTING ARM

824174

36

HANDLE GRIP

422153

37

LATCH CONNECTING ARM

783063

38

SHOULDER BOLT

259722

39

WHIZ NUT

253035

40

LIFT LINKAGE ADJUSTMENT BRACKET

824566

41

WHIZ BOLT .312-18 X .500

253189

42

HEX BOLT .312-18 X 1

243205

43

TORSION SPRING

284423

44

LIFT LINKAGE TUBE (model 3452: right side)

644472

-

LIFT LINKAGE TUBE (model 3452: left side / model 3461: right side)

644547

45

LIFT LINKAGE TUBE (model 3452: left side / model 3461: right side)

644547

-

LIFT LINKAGE TUBE (model 3461: left side)

644548

46

BOLT

243670

47

LIFT ROD BRACKET

644072

48

NUT SLEEVE

321185

49

NUT .500-13

254470

50

WASHER

257063

51

DECK LATCH

729237

52

WASHER

257067

53

COMPRESSION SPRING

283332

54

BOLT

243640

55

CLUSTER SPROCKET SPACER

902292

56

SPIRAL FLANGE LOCK NUT

253067

57

ROLLER MOUNT SPACER

902284

58

HEX BOLT .375-16 X 3

243365

59

3461 TRACTION KIT TOOL

783068

60

LINCH PIN 250 X 1.750

261624

61

LIFT ASSIST BAR BRACKET

644060

62

LIFT BAR MOUNT BRACKET

729330

63

3452 LIFT ASSIST BAR

944050

-

3461 LIFT ASSIST BAR

944055

64

LIFT LEVER BOLT OUTER SLEEVE

942158

65

FOAM GRIP

422177
