Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

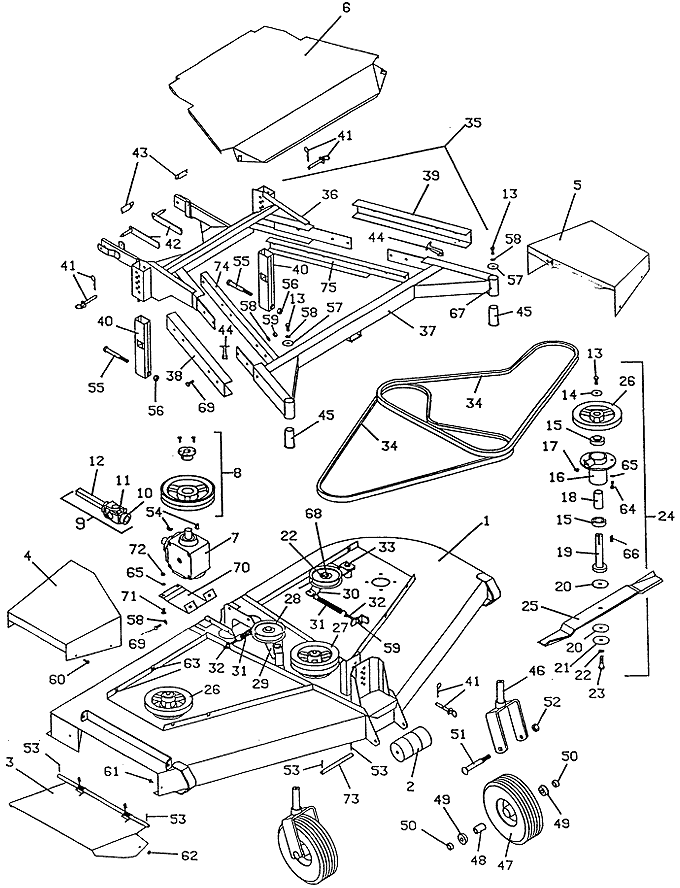

6372 • Mower Assembly

1990

Mower Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

6372/9072 Deck Weldment

643273

2

Roller Assembly

426136

3

72" Discharge Shield Assembly

603289

4

72" Right Belt Shield

643753

5

72" Left Belt Shield

643754

6

72" Center Shield Assembly

603779

7

Right Angle Gearbox

390028

8

Sheave with Hub

604759

9

UN Half Shaft

398520

10

Yoke

401013

11

Cross & Bearing

121010

12

Yoke & Shaft

402605

13

Hex Bolt

243331

14

Cupped Washer

257041

15

Ball Bearing without Fluid Seal

120081

16

Spindle Grease Housing

320526

17

Zerk Grease Fitting

280734

18

Tube Bearing Spacer

903640

19

STD Blade Spindle Shaft

603775

20

Fiber Washer

421200

21

Washer

257061

22

Lock Washer

257432

23

Hex Bolt

243581

24

Blade Spindle Assembly (includes items 13-23)

623785

25

25 Inch Notched High Lift Blade

320253

26

Sheave

415900

27

Sheave

416140

28

Idler

393225

29

72" Lower Idler Arm

603073

30

52 & 61 Idler Arm with Bearing

603074

-

Nylon Bearing

422585

31

Extension Spring with Swivel

283820

32

J Bolt Idler Adjustment

730391

33

Shoulder Bolt

259746

34

Belt

382062

35

6372 Carrier Frame Assembly

603218

36

72" Carrier Rear Section

643210

37

90/9372 Front Crossmember Assembly

606265

38

Right Center Wheel Support Channel

729432

39

Left Center Wheel Support Channel

729433

40

Deck Lift Tube

643818

41

Pin & Clip Assembly

603625

-

Hair Pin

260525

42

Attaching Pin

643625

43

Safety Pin

261848

44

Rubber Draw Latch

281301

45

Flanged Sintered Bushing

833260

46

72" Fork Assembly

604355

47

4.10 x 4 Flatproof Wheel

603929

48

Deck Wheel Bearing Spacer

902473

49

Ball Bearing

120050

50

Axle Spacer

902415

51

Carriage Bolt

247715

52

Lock Nut

253970

53

Cotter Pin

260652

54

Woodruff Key

281839

55

Bolt

243625

56

Lock Nut

253930

57

Washer

774022

58

Lock Washer

257412

59

Nut

254450

60

Whiz Hex Bolt

253175

61

Whiz Truss Bolt

253176

62

Whiz Nut

253025

63

Speed Nut

254431

64

Hex Bolt

243195

65

Lock Washer

257402

66

Square Key

281586

67

Zerk Grease Fitting

280777

68

Hex Bolt

243565

69

Hex Bolt

243305

70

72 Gear Box Shield

724197

71

Carriage Bolt

247130

72

Nut

254450

73

Roller Pin

780606

74

Right 72" Reinforcement Channel

729434

75

Left 72" Reinforcement Channel

729435

76

Mower Safety Decal Set

603280
