Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

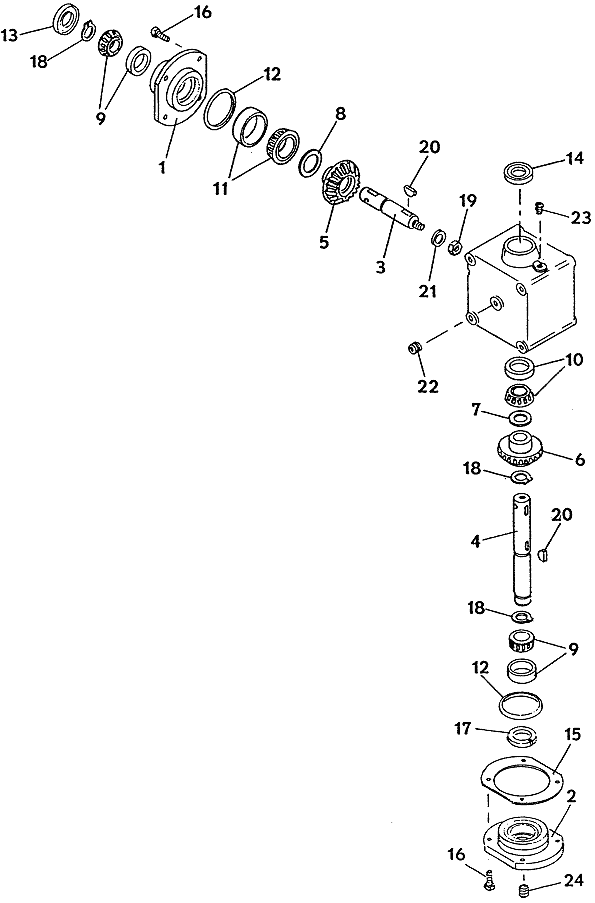

6372 Deck • Right Angle Gearbox Assembly

1990

Right Angle Gearbox

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Cap End

392050

2

Cap Bottom

392025

3

4.880" Shaft

393580

4

7.250" Shaft

393610

5

1 inch - 18 teeth Bevel Gear

392506

6

1 inch - 27 teeth Bevel Gear

392507

7

Steel Shim

282310

8

Steel Shim

282311

9

Bearing & Cup

124450

10

Bearing & Cup

124450

11

Bearing & Cup

124460

12

O-Ring

126582

13

Seal

125387

14

Seal

125386

15

Shim Cap

282365

16

.875 Shaft

243205

17

Load Ring

126650

18

Retaining Ring

126660

19

Nut

254503

20

Woodruff Key

281839

21

Washer

257093

22

Not Available

365510

23

Vent Plug

365505

24

Hex Socket Plug

365507

25

Right Angle Gearbox

390028

return to 6372 index return to top of page
