718K   720K   •   Tractor Assembly

1992

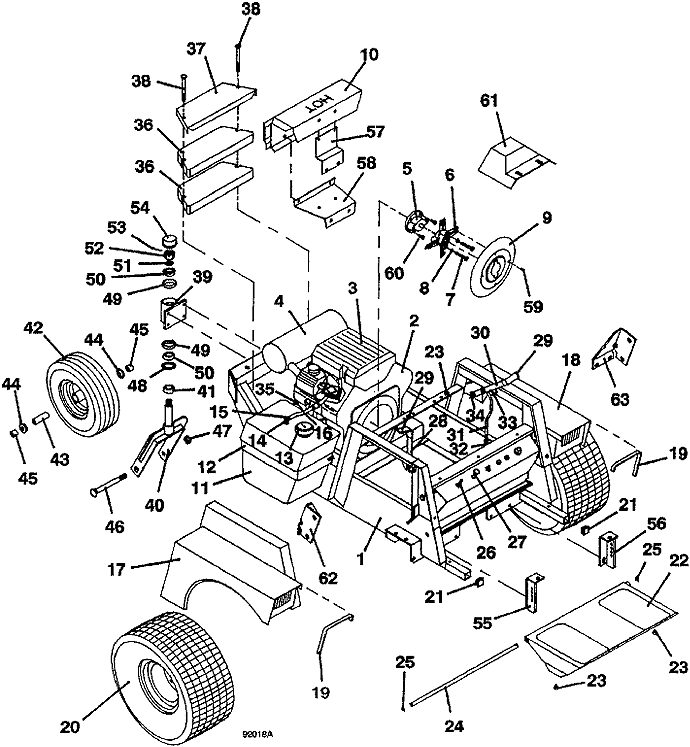

Tractor Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

718C Tractor Frame

643379

2

Kohler 18hp Overhead Valve Engine

100142

-

Kohler 20hp Engine

100161

3

Kohler Air Filter

100928

-

Kohler 20hp Air Filter Pre-Cleaner

100929

4

Kohler Muffler

101217

-

Kohler Exhaust Gasket

101041

5

Booster Fan Adapter

100798

6

7 inch Booster Fan

100793

7

Hex Bolt

243235

8

Lock Washer

257402

9

Intake Screen

721130

10

Muffler Shield

722391

-

Inner Panel Shield

722309

11

Fuel Tank Assembly with Draw Tube

603813

12

Fuel Tank Mounting Bracket

643144

13

Cap with Fuel Level

141125

14

Fuel Draw Tube

101819

15

Spring Hose Clamp

280260

16

Fuel Line Hose

821710

-

Kohler Fuel Filter

101001

17

right 700S Fender w/a

643962

-

right 718K Trim Decal

163214

-

right 720K Trim Decal

163454

18

left 700S Fender w/a

643963

-

left 718K Trim Decal

163215

-

left 720K Trim Decal

163455

19

700/900 Fender Edge Trim

822635

20

20 x 10 x 8 Tan Wheel & Turf Tire

483921

-

20 x 10 x 8 Turf Tire

482471

-

21 x 11 x 8 Bar Tread Tire

482478

-

5-Bolt 8 x 6 Wheel

483410

-

5-Bolt 8 x 9.125 Wheel

483415

-

21 x 11 x 8 right Wheel & Bar Tread Tire

483930

-

21 x 11 x 8 left Wheel & Bar Tread Tire

483931

21

1 inch ID Square Plastic Plug

422065

22

Foot Rest

603345

23

Rubber Bumper

424015

24

Foot Rest Pivot Rod

780658

25

External Retainer

263500

26

PTO Switch & Cover Assembly

604796

27

Mechanical Choke

142250

28

718 Throttle Assembly

603821

-

Control Cable Assembly

323655

-

Throttle Lever Stop

722009

29

Handle Grip

422150

30

700 Brake Lever Assembly

603557

31

700 Brake Linkage Rod

730361

32

Clevis Yoke

265537

33

Shoulder Bolt

259741

34

Cotter Pin

260648

35

Kohler Oil Filter

100802

36

34 lb. Counterweight

323933

37

34 lb. Weight Cover

729514

38

NOT AVAILABLE

247305

39

Rear Axle Pivot Assembly

604596

40

Rear Fork & Lock Nut Assembly

604364

41

Spacer

282615

42

13 x 5 x 6 Wheel & Tire with Bearing & Spacer

483861

-

13 x 5 x 6 Ribbed Tubeless Tire

482350

-

6 x 3.25 Tan Wheel & Tire with Bearing & Spacer

483301

43

rear Wheel Bearing Spacer

902475

44

Ball Bearing

120050

45

Axle Spacer

902425

46

Carriage Bolt

247725

47

Lock Nut

253970

48

Seal

125855

49

Bearing Cup

123522

50

Tapered Bearing

122522

51

14 GA Bushing Washer

257091

52

Nut

254502

53

Cotter Pin

260668

54

Dust Cap

481432

55

right 700 Attachment Mount

643138

56

left 700 Attachment Mount

643139

57

Shield Mount Bracket

643117

58

Lower Muffler Bracket

729270

59

left Steering Lever Pivot

643659

60

NOT AVAILABLE

271023

61

700KC Intake Shield with Sides

644746

62

right ROPS Gusset

726131

63

left ROPS Gusset

726132

64

718K Decal Set

603266

65

720K Decal Set

603274

return to 718K 720K index return to top of page
