Genuine OEM Grasshopper® Mower Parts Diagrams

718K   720K   •   Wiring Assembly

1992

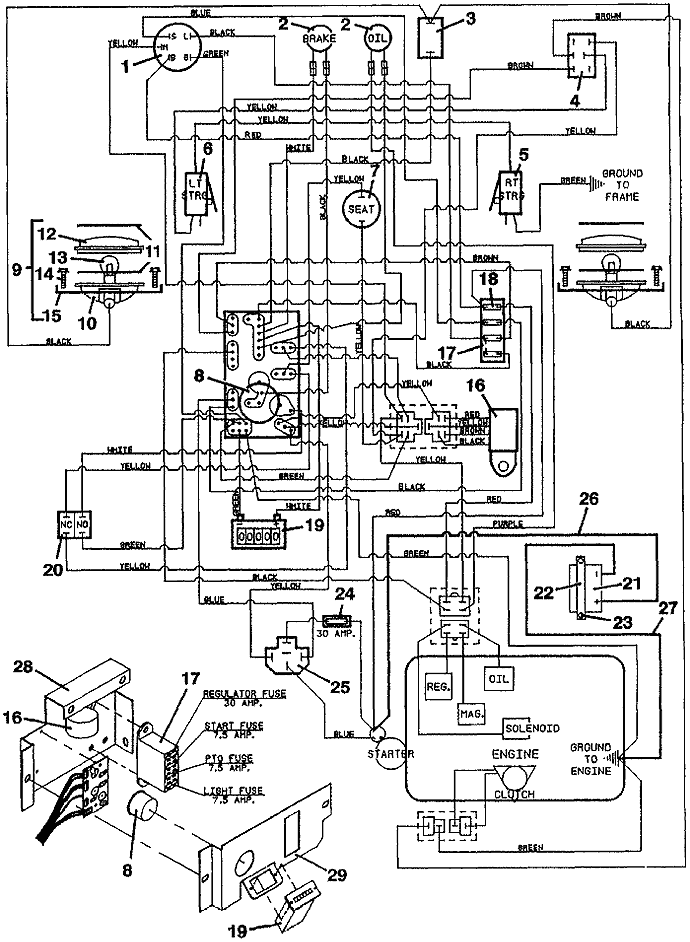

Wiring Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Briggs & Stratton / Kohler Key Switch

183806

-

Ignition Key with Cover

101101

-

Nut

254498

-

Plastic Panel

422078

2

Indicator Light

182310

3

Light Toggle Switch

183950

4

PTO Switch & Cover Assembly

604796

5

Lever Switch

183860

-

Steering Switch Mount - right

720160

6

Lever Switch

183860

-

Steering Switch Mount - left

720161

7

Seat Switch

183870

8

12 Volt Flasher

182440

9

Worklight Assembly

603400

10

Rectangular Lamp Housing

182350

11

Light Assembly Gasket

420550

12

Rectangular Lamp Lens (NO LONGER AVAILABLE)

182400

13

Worklamp Light Bulb

182000

14

#10 Screw

252057

15

Worklight Clamp

720163

16

Safety Interlock Relay

200910

17

Fuse Block

181722

-

1 Wire Fuse Clip

184458

-

2 Wire Fuse Clip

184460

-

Double Fuse Clip

184472

18

30 amp Auto ATC Fuse

181470

-

7.5 amp Auto ATC Fuse

181460

19

Snap-In Hour Meter

141551

20

Brake Interlock Switch

183894

21

12 Volt Wet Battery

180125

22

Battery Hold-Down

822410

23

Hook Bolt

240115

24

Inline Auto Fuse Holder

181735

-

30 amp Auto ATC Fuse

181470

25

12v DC Relay

184271

-

Type 1 6mm Push-On

184570

-

.250 Fast-On Terminal

184581

-

5 Way Female Connector

184926

26

35" Red Battery Cable

180335

-

Starter Terminal Boot

425219

27

20" Black Battery Cable

180280

28

Fuse Block Mount

722204

29

Fuse Block Cover

722177

30

718K Command Wiring Assembly

603915

return to 718K 720K index return to top of page
