Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

718K   720K   •   Steering Assembly

1996

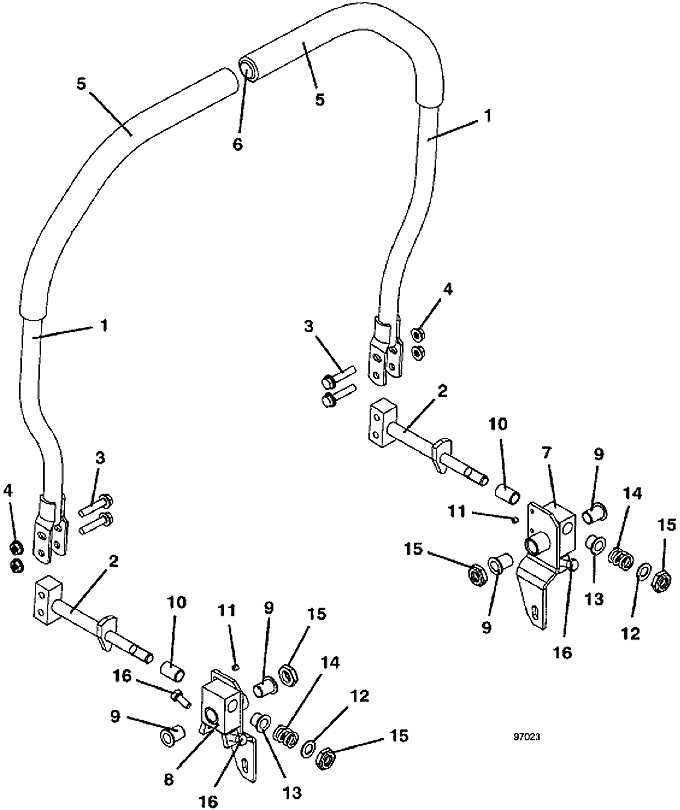

Steering Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Steering Lever

643497

2

Steering Lever Adjustable Mount

643926

3

Hex Flange Whiz Bolt

253195

4

Whiz Nut

253035

5

Handle Grip

422179

6

.75 inch ID Vinyl Cap

422095

7

right Steering Block with Stops

824647

8

left Steering Block with Stops

824648

9

Nylon Bearing

422580

10

Nylon Bearing with Slot

422561

11

Set Screw

259305

12

Washer

257063

13

1/8 inch diameter Plastic Plug

422055

14

Compression Spring

283324

15

Nut with Nylon Insert

253470

16

Hex Bolt

243197
