Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

720K   725K   •   Steering Assembly

2001

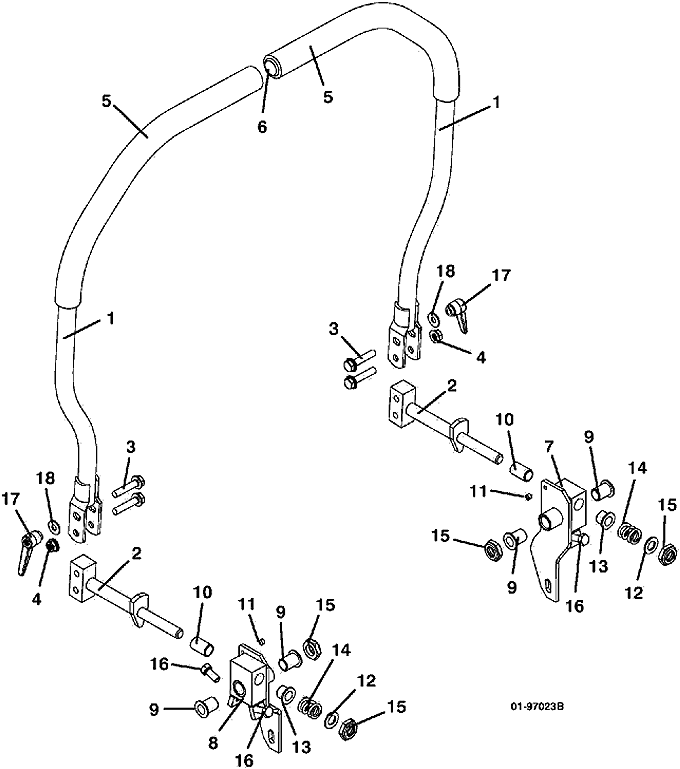

Steering Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Wide Std Steering Lever Assembly

604778

2

Steering Lever Adjustable Mount

643926

3

Hex Flange Whiz Bolt

253195

4

Whiz Nut

253035

5

Handle Grip

422179

6

.75 inch ID Vinyl Cap

422095

7

right Steering Pivot with Stops & Bearings

604771

8

left Steering Pivot with Stops & Bearings

604772

9

Sleeve Bearing with Flange

422559

10

Sleeve Bearing

422557

11

Set Screw

259305

12

Washer

257063

13

Sleeve Bearing with Flange

422556

14

Compression Spring

283324

15

Nut with Nylon Insert

253470

16

Hex Bolt

243197

15

Adjustable Lever Nut

254438

16

Flat Washer

257019

return to 720K 725K index return to top of page
