720K   Tractor Assembly

2003

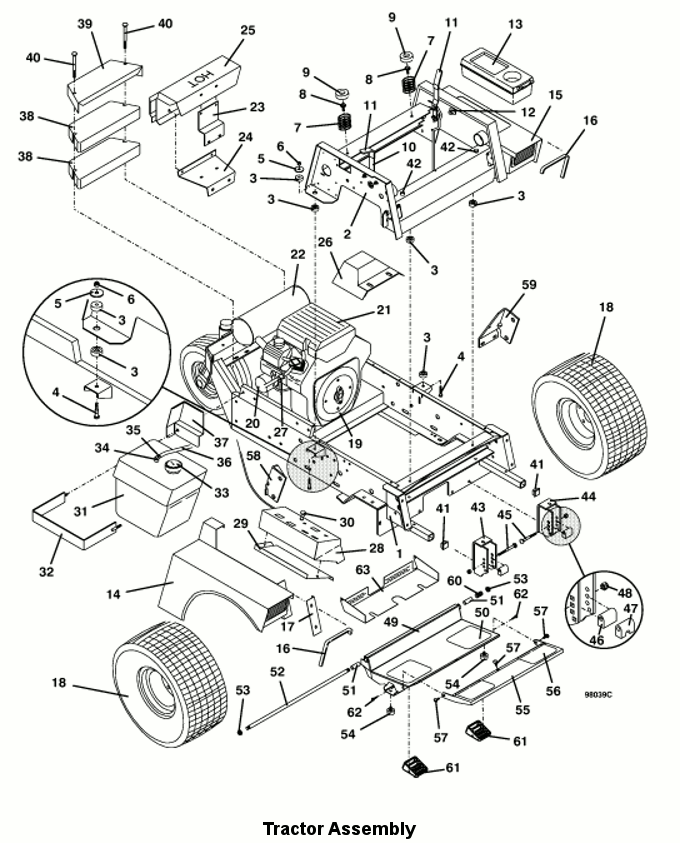

Tractor Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

718/718K Lower Frame

644229

2

97 Air Cooled Upper Frame

643870

3

Step Bushing

257037

4

Hex Bolt

243220

5

Washer

774020

6

Nut with Nylon Insert

253450

7

Compression Spring

283516

8

Flange Whiz Bolt

253203

9

Seat Spring Cap

422127

10

Throttle Assembly

603821

-

Control Cable Assembly

323655

-

Throttle Lever Stop

722009

11

Handle Grip

422150

12

Spacer

902280

-

Hex Bolt

243330

-

Washer

257040

13

Tool Box

422040

14

700/900 right Fender with Safety Decal

693210

-

720K right Trim Decal

163454

15

700/900 left Fender with Safety Decal

693211

-

720K left Trim Decal

163455

16

700/900 Fender Edge Trim

822635

17

right Fender Cover Panel

722062

18

20 x 10 x 8 Tan Wheel & Turf Tire

483921

-

20 x 10 x 8 Turf Tire

482472

-

21 x 11 x 8 Bar Tread Tire

482478

-

5-Bolt 8 x 6 Wheel

483410

-

5-Bolt 8 x 9.125 Wheel

483415

-

21 x 11 x 8 right Wheel & Bar Tread Tire

483930

-

21 x 11 x 8 left Wheel & Bar Tread Tire

483931

19

Kohler 20hp Engine

100161

20

Kohler Oil Filter

100802

21

Kohler Air Filter

100928

-

Kohler 20hp Air Pre-cleaner Filter

100929

22

Kohler Muffler

101217

-

Kohler Exhaust Gasket

101041

23

Shield Mount Bracket

643117

24

Lower Muffler Bracket

729270

25

Muffler Shield

722391

-

Inner Panel Shield

722309

26

Intake Shield with Decal

693782

27

Kohler Fuel Filter

101001

28

Console with Decal for Air-Cooled Engines

693100

29

96 Side Console Fill Panel

721152

30

Mechanical Choke

142233

31

Fuel Tank Assembly with Draw Tube

603813

32

Fuel Tank Mounting Bracket

643144

33

Cap with Fuel Level

141125

34

Fuel Draw Tube

101819

35

Spring Hose Clamp

280260

36

Fuel Line Hose

821710

37

right Fuel Tank Heat Shield

721123

38

34 lb. Counterweight

323933

39

34 lb. Weight Cover

729514

40

Carriage Bolt

247325

41

1 inch ID Square Plastic Plug

422065

42

Rubber Bumper

424015

43

700/900 right Quick Disconnect Deck Mount

643092

44

700/900 left Quick Disconnect Deck Mount

643093

45

Special Carriage Bolt

247280

46

Deck Mount Bushing

282575

47

Floating Deck Mount Bushing

282576

48

Nut with Nylon Insert

253460

49

700/900 Adjustable Foot Platform Assembly

604346

50

Foot Rest Tread

420905

51

Nylon Bearing

422615

52

Foot Rest Pivot Rod

780673

53

Nylon Insert Nut

253470

54

Rubber Bumper

424052

55

700 Foot Platform Extension

603301

56

Foot Rest Tread Extension

420904

57

Carriage Bolt

247130

58

right ROPS Gusset

726131

59

left ROPS Gusset

726132

60

Compression Spring

283312

61

Seat Switch Mount

724100

62

Hex Bolt

243026

63

Hydro Fan Screen

721243

64

Decal Set for 720K with Side Console

604294
