Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

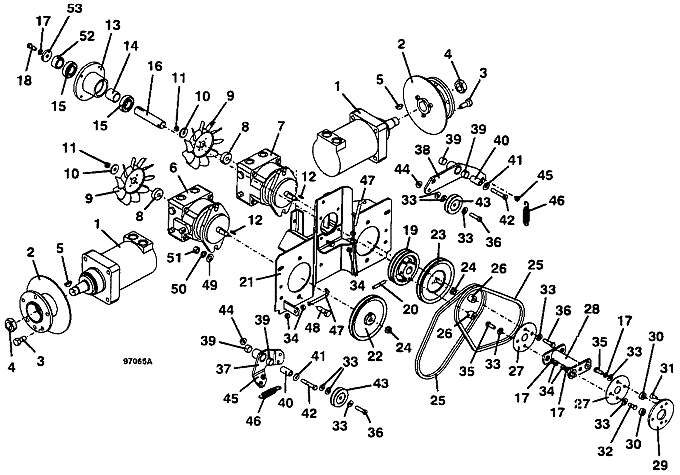

721D2 • Drive Assembly

1998

Drive Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Wheel Motor

391478

2

6.0 Hub and Rotor Assaembly

604439

3

Lug Bolt

248565

4

Nut

254522

5

Woodruff Key

281860

6

left Hydro Pump

391452

7

right Hydro Pump

391453

8

10A Fan Hub Mount

885123

9

7" clockwise Nylon Fan

320857

10

Washer

774020

11

Nut

254452

12

Rectangle Key

281562

13

Vac Fan Spindle Housing

320522

14

Drive Bearing Spacer

903650

15

2 Reg Seal 25mm Ball Bearing

110081

16

700G2 Drive Shaft

882052

17

Lock Washer

257412

18

Hex Bolt

243331

19

Sheave

415036

20

Roll Pin

261061

21

900 Drive Mount

644630

22

Sheave

415024

23

Sheave

415023

24

Flanged Nut with Counterbore

830351

25

Belt

381540

26

G2 Drive Spacer

902327

27

Flex Coupling Disc

821530

28

Coupling Connector

644118

29

Coupling Spacer

783458

30

Hex Whiz Flange Bolt

902318

31

M8 Flat Head Cap Screw

270346

32

Hex Bolt

830040

33

Washer

257030

34

Nut

254450

35

Bolt

243330

36

Bolt

243340

37

G2 Lower Idler Arm Assembly

604448

38

G2 Upper Idler Arm Assembly

604447

39

Oilite Bearing

121758

40

Pivot Shaft Bearing

881105

41

Washer

257040

42

Hex Bolt

243350

43

Idler

604449

44

Whiz Nut

253043

45

Nylon Bearing

422520

46

Extension Spring with Swivel

283819

47

Idler Adjustment J Bolt

730391

48

Hex Bolt

243570

49

Washer

257062

50

Lock Washer

257432

51

Washer

254470

52

Spacer

282630

53

Washer

883801
