Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

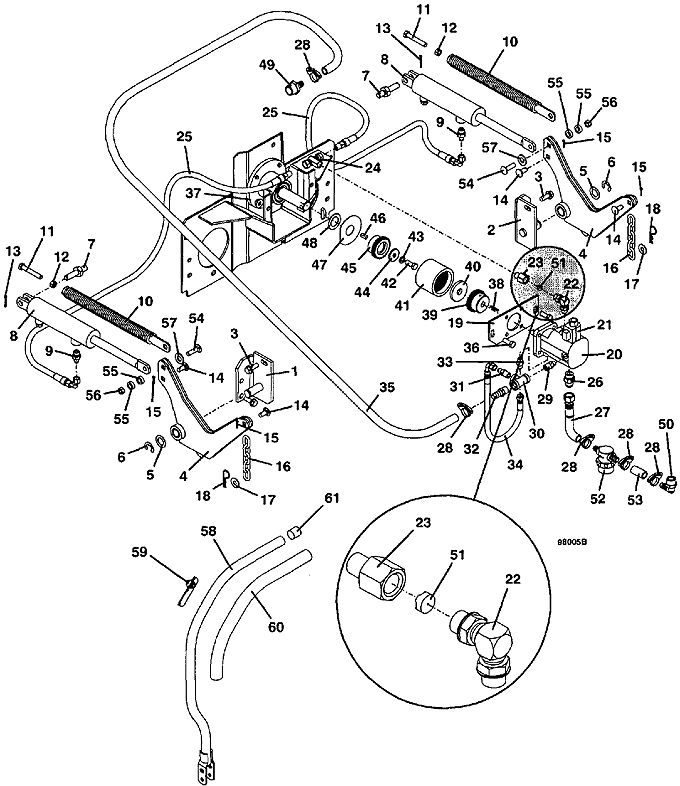

721D2 • Optional Hydraulic Lift Assembly

1999

Hydraulic Lift Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

right Lift Pivot

644517

2

left Lift Pivot

644518

3

Flange Whiz Bolt

253203

4

Hydraulic Lift Rocker

603716

5

Washer

257092

6

External Retainer

263529

7

Cylinder Mount Pin with Groove

887119

8

Hydraulic Cylinder

290021

-

Hydraulic Lift Cylinder Head Seal Kit

290096

9

O-Ring Adapter

360052

10

Spring & Plug Nut Assembly

604762

11

Hex Bolt

243361

12

Nut

254450

13

Cotter Pin

260652

14

Clevis Pin

261339

15

Cotter Pin

260648

16

Lift Chain

820320

17

Washer

257040

18

Hair Pin

260523

19

Pump Mount Plate

725326

20

700/900 G2 Hydraulic Lift Pump Assembly

604430

21

Hydraulic Solenoid Valve

144950

22

90 degree O-Ring Adapter

360055

23

O-Ring Adapter

360045

24

Swivel Tee Adapter

360005

25

Hose Assembly

424310

26

Steel O-Ring Boss Fitting

363832

27

Hose Assembly

424326

28

Plastic Snap Hose Clamp

280278

29

O-Ring Adapter

360040

30

Reducer Tee

366115

31

Adapter Fitting

360012

32

Brass Hose Insert

360260

33

O-Ring Adapter

360050

34

Hose Assembly

424302

35

.5 Hydraulic Hose

821806

36

Hex Bolt

243330

37

Whiz Nut

253043

38

Square Key

281540

39

Coupler Hub

388576

40

Coupling Stabilizer

424150

41

Nylon Coupler Sleeve

388560

42

Hex Bolt

243331

43

Lock Washer

257412

44

Washer

774020

45

Lower Flex Coupler

831039

46

Square Key

281580

47

Washer

770045

48

Washer

257106

49

Nylon Fitting

363859

50

Nylon Fitting

363851

51

Flow Restrictor

780507

52

In-Line Strainer

366552

53

.5 Hydraulic Hose

821791

54

Carriage Bolt

247254

55

.25 Traction Kit Spacer

881095

56

Lock Nut

253890

57

Washer

257062

58

Wide Std. Steering Lever Assembly with Swivel

604779

59

Sealed Dome Switch

183940

60

Handle Grip

422179

61

.75 (Inner Dimensions) Vinyl Cap

422095
