Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

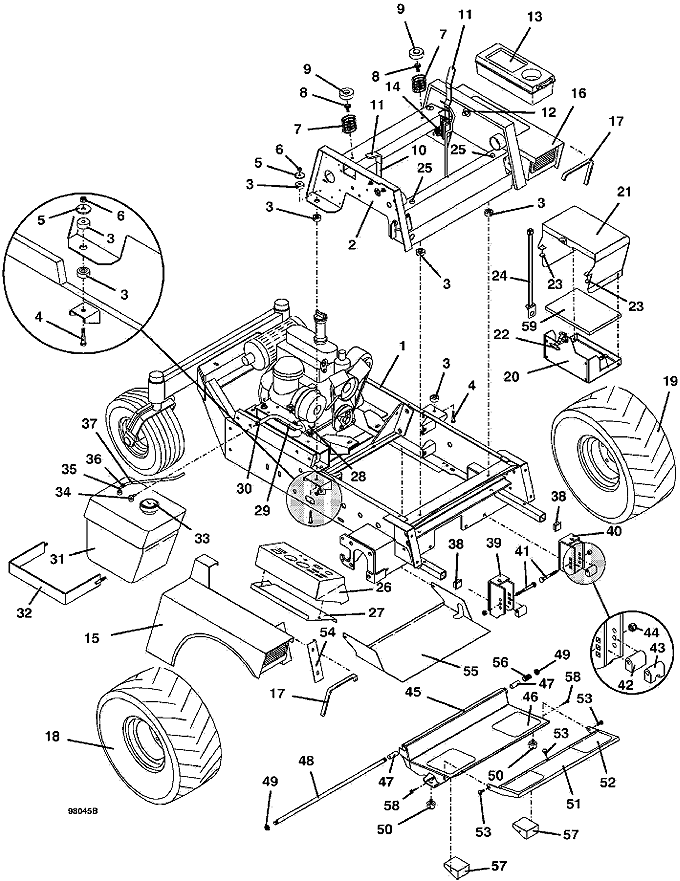

721D2 • Tractor Assembly

2000

Tractor Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

700 8.0 Caliper Lower Frame

644238

2

Upper G2 Frame

643871

3

Step Bushing

257037

4

Hex Bolt

243220

5

Washer

774020

6

Nylon Insert Nut

253450

7

Compression Spring

283516

8

Flange Whiz Bolt

253203

9

Seat Spring Cap

422127

10

721D/721D2 Throttle Assembly

603855

-

Cable Assembly Control

323622

-

Throttle Lever Stop

722009

11

Handle Grip

422150

12

Spacer

902280

-

Hex Bolt

243330

-

Washer

257040

13

Tool Box

422040

14

12v Voltage Regulator

185530

15

right 700/900 Fender with Safety Decal

693210

-

right 721D Trim Decal

163220

16

left 700/900 Fender with Safety Decal

693211

-

left 721D Trim Decal

163221

17

700/900 Fender Edge Trim

822635

18

21 x 11 x 10 right Wheel & Tire with Bar Tread

483940

-

20 x 10 x 10 Turf Tire

482474

-

21 x 11 x 10 Tire with Bar Tread

482484

-

10 x 8.5 5-Bolt Wheel

483420

-

20 x 10 x 10 Wheel & Turf Tire

483924

19

21 x 11 x 10 left Wheel & Tire

483941

-

20 x 10 x 10 Turf Tire Only

482474

-

21 x 11 x 10 Tire with Bar Tread

482484

-

10 x 8.5 5-Bolt Wheel

483420

-

20 x 10 x 10 Wheel & Turf Tire

483924

20

Battery Box Assembly with Strap

603104

21

Battery Box Lid Assembly

603570

22

Rubber Draw Latch

281301

23

Rubber Bumper

424029

24

Battery Hold Down Strap

603110

25

Rubber Bumper

424015

26

Console with Decal for Liquid-Cooled Diesel Models

693104

27

Console Panel Filler

721152

28

Kubota Fuel Pre-filter

101005

29

Fuel Line Hose

821713

30

Spring Hose Clamp

280261

31

Diesel Fuel Tank Assembly

603812

32

Fuel Tank Mounting Bracket

643144

33

Cap with Fuel Level

141125

34

Fuel Draw Tube

101818

35

Fuel Draw Tube

101817

36

Spring Hose Clamp

280257

37

Return Fuel Line Hose

821740

38

Square Plastic Plug

422065

39

right 700/900 Quick Disconnect Deck Mount

643092

40

left 700/900 Quick Disconnect Deck Mount

643093

41

Special Carriage Bolt

247280

42

Deck Mount Bushing

282575

43

Floating Deck Mount Bushing

282576

44

Nylon Insert Nut

253460

45

700/900 Adjustable Foot Platform Assembly

604346

46

Foot Rest Tread

420905

47

Nylon Bearing

422615

48

700 Foot Platform Pivot Rod

780673

49

Nylon Insert Nut

253470

50

Rubber Bumper

424052

51

700 Foot Platform Extension

603301

52

Foot Rest Extension Tread

420904

53

Carriage Bolt

247130

54

right Fender Cover Panel

722062

55

G2 Trash Shield

721383

56

Compression Spring

283312

57

Footrest Isolator Block

424100

58

Hex Bolt

243026

59

Battery Tray Pad

427275

60

Decal Set for 721D2 with Side Console

604299

return to 721D2 index return to top of page
