Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

721D2 • Optional Hydraulic Lift Assembly

2003

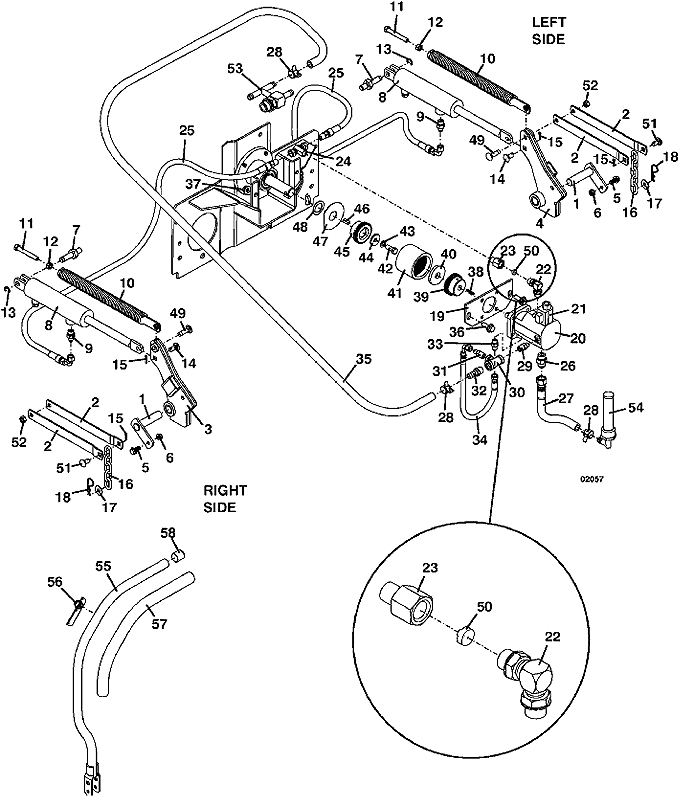

Hydraulic Lift Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Traction Kit Pin

644635

2

600 with SL Deck Lift Strap

732410

3

right Rocker without Extension

603701

-

Oilite Bearing

121766

4

left Rocker without Extension

603702

-

Oilite Bearing

121766

5

Hex Flange Whiz Bolt

253192

6

Whiz Nut

253035

7

Cylinder Mount Pin with Groove

887119

8

Hydraulic Cylinder

290021

-

Hydraulic Lift Cylinder Head Seal Kit

290096

9

O-Ring Adapter

360052

10

Spring & Plug Nut Assembly

604762

11

Hex Bolt

243395

12

Nut

254450

13

External Retainer

263500

14

Clevis Pin

261339

15

Cotter Pin

260648

16

Lift Chain

820320

17

Washer

257040

18

Hair Pin

260523

19

Pump Mount Plate

725326

20

Counter-Clockwise Hydraulic Valve with Solenoid

290074

21

Hydraulic Solenoid Valve

144950

22

90 degree O-Ring Adapter

360055

23

O-Ring Adapter

360045

24

Swivel Tee Adapter

360005

25

Hose Assembly

424310

26

Steel O-Ring Boss Fitting

363832

27

Hose Assembly

424339

28

Spring Hose Clamp

280265

29

O-Ring Adapter

360040

30

Reducer Tee

366115

31

Adapter Fitting

360012

32

Brass Hose Insert

360260

33

O-Ring Adapter

360050

34

Hose Assembly

424302

35

.5 Hydraulic Hose

821806

36

Flange Whiz Bolt

253203

37

Whiz Nut

253043

38

Square Key

281540

39

Coupler Hub

388576

40

Coupling Stabilizer

424150

41

Nylon Coupler Sleeve

388560

42

Hex Bolt

243331

43

Lock Washer

257412

44

Washer

774020

45

Lower Flex Coupler

831039

46

Square Key

281580

47

Washer

770045

48

Washer

257106

49

Carriage Bolt

247254

50

Flow Restrictor

780507

51

Clevis Pin

261336

52

Lock Nut

253890

53

3 Bead O-Ring Adapter

360075

54

Strainer

366557

55

Wide Std. Steering Lever Assembly with Swivel

604779

56

Sealed Dome Switch

183940

57

Handle Grip

422179

58

.75 (Inner Dimensions) Vinyl Cap

422095
