Genuine OEM Grasshopper Lawn Mower Parts

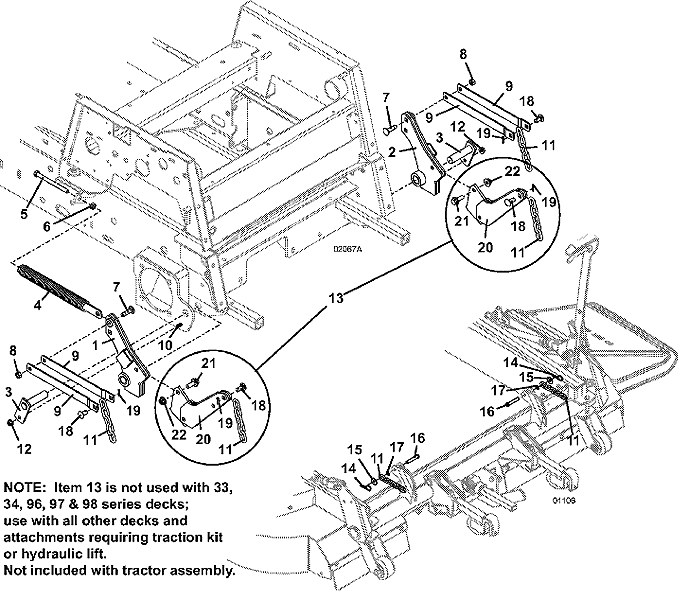

Genuine OEM Grasshopper® Mower Parts Diagrams

721D2 • Traction Kit

2003

Traction Kit

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

right Rocker without Extension

603701

-

Oilite Bearing

121766

2

left Rocker without Extension

603702

-

Oilite Bearing

121766

3

Traction Kit Pin

644635

4

Traction Kit Spring Assembly

605760

5

Hex Bolt

243395

6

Nut

254450

7

Carriage Bolt

247254

8

Lock Nut

253890

9

Lift Strap for 600 Deck with SL

732410

10

Hex Flange Whiz Bolt

253192

11

Lift Chain

820320

12

Whiz Nut

253035

13

700/900 Rocker Extension Kit

604708

14

Hair Pin

260523

15

Washer

257040

16

Clevis Pin

261362

17

Push-On Retainer

262950

18

Clevis Pin

261339

19

Cotter Pin

260648

20

Rocker Arm Extension

644706

21

Flange Whiz Bolt

253203

22

Whiz Nut

253043
