721D2 • Electrical Wiring & Lights

2004

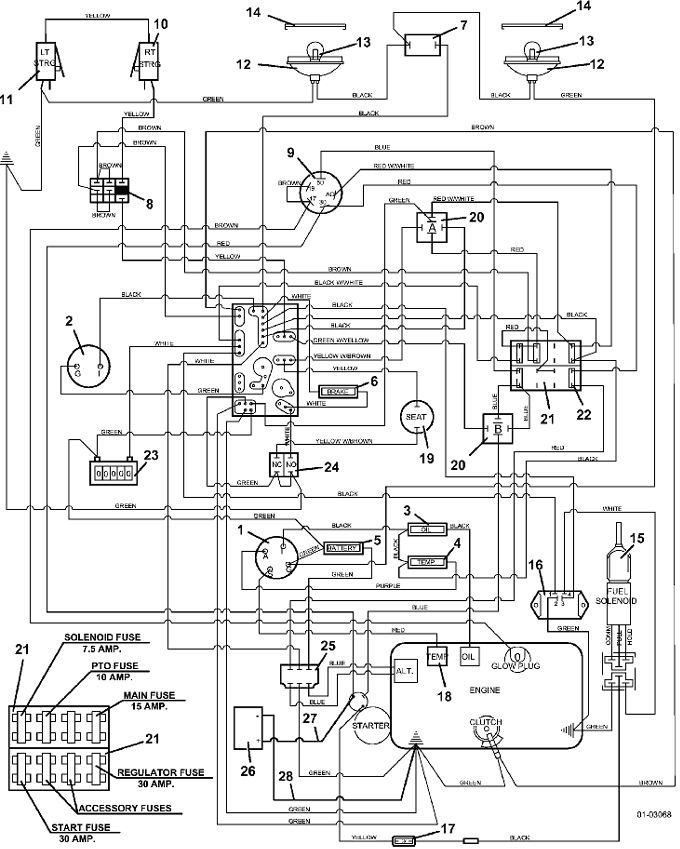

Wiring Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Zoned Electric Temperature Gauge

141160

2

VoltMeter Gauge

141200

3

Oil Indicator Light

182327

4

Temperature Indicator Light

182328

5

Battery Indicator Light

182325

6

Brake Indicator Light

182326

7

Rocker Switch

184179

8

Push/Pull Switch

183925

9

Kubota Sealed Key Switch

183827

-

Kubota Double Notch Ignition Key

101106

10

Lever Switch

183860

-

right Steering Switch Mount

720160

11

Lever Switch

183860

-

left Steering Switch Mount

720161

12

Flood Work Lamp

182253

13

Headlight Light Bulb

182005

14

Work Lamp Snap Mount Bezel

182251

15

Fuel Solenoid Assembly

603350

16

Interlock Module Switch

184220

17

Inline Auto Fuse Holder

181735

-

30 amp ATC Auto Fuse

181470

18

Temperature Sender

141222

19

Seat Switch

183870

20

12v DC Relay

184272

-

Type 1 6mm Push-On

184570

-

.250 Fast-On Terminal

184581

-

5-Way Female Connector

184926

21

Fuse Block

181722

-

1 Wire Fuse Clip

184458

-

2 Wire Fuse Clip

184460

-

Double Clip Fuse Clip

184472

22

30 amp ATC Auto Fuse

181470

-

15 amp ATC Auto Fuse

181465

-

10 amp ATC Auto Fuse

181462

-

7.50 amp ATC Auto Fuse

181460

23

Snap In Hour Meter

141551

24

Brake Interlock Switch

183894

25

12v Voltage Regulator

185530

26

12 Volt Side Post Wet Battery

180130

-

Hex Bolt

243309

-

Battery Box without Draw Latch

644163

-

Battery Box Lid without Latch

644478

-

Battery Hold-Down Bracket

754135

27

11" Red Battery Cable

180310

-

Starter Terminal Boot

425219

28

16" Black Battery Cable

180276

29

721D '96 Wiring Assembly

604974

30

Console Decal for Water Cooled 700

161131
