721D • Tractor Assembly

2004

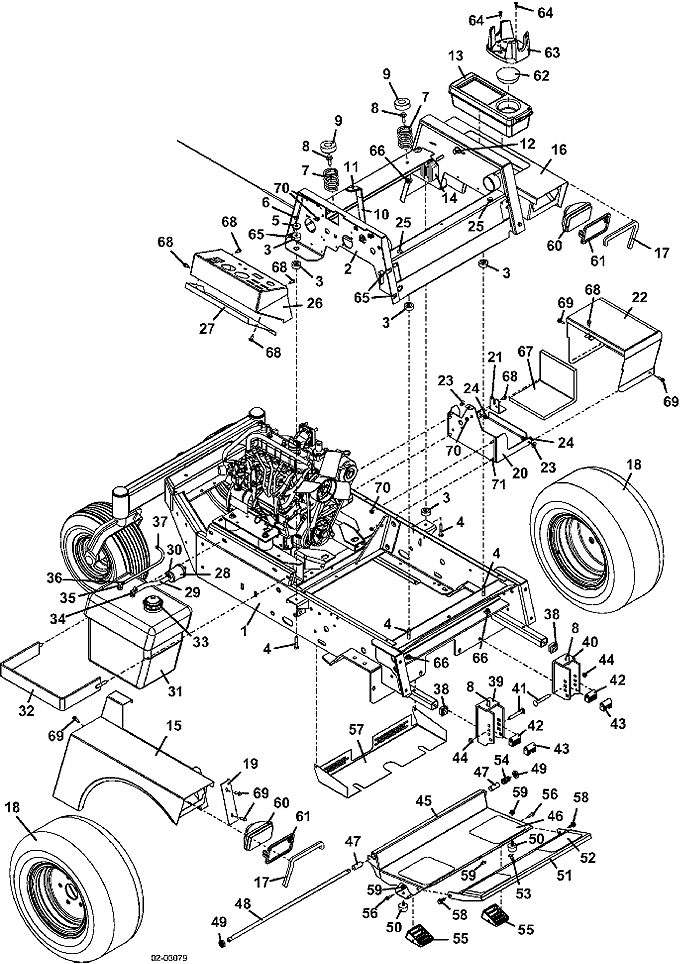

Tractor Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

700 Frame

644230

2

97 Upper Frame

643869

3

Step Bushing

257037

4

Hex Bolt

243220

5

Washer

774020

6

Nylon Insert Nut

253450

7

Compression Spring

283516

8

Whiz Flange Bolt

253203

9

Seat Spring Cap

422127

10

721D/721D2 Throttle Assembly

603855

-

Control Cable Assembly

323622

-

Throttle Lever Stop

722009

11

Handle Grip

422150

12

Spacer

902280

-

Hex Bolt

243330

-

Washer

257040

13

Tool Box

422040

14

12v Voltage Regulator

185530

15

700/900 right Fender with Safety Decal

693210

-

721D right Trim Decal

163220

16

700/900 left Fender with Safety Decal

693211

-

721D left Trim Decal

163221

17

700/900 Fender Edge Trim

822635

18

20 x 10 x 8 Tan Wheel & Turf Tire

483921

-

20 x 10 x 8 Turf Tire

482472

-

21 x 11 x 8 Bar Tread Tire

482478

-

5-Bolt 8 x 6 Wheel

483410

-

5-Bolt 8 x 9.125 Wheel

483415

-

21 x 11 x 8 right Wheel & Bar Tread Tire

483930

-

21 x 11 x 8 left Wheel & Bar Tread Tire

483931

19

right Fender Cover Panel

722062

20

Battery Box Assembly without Draw Latch

644163

21

Battery Hold-Down Bracket

754135

22

Battery Box Lid without Latch

644478

23

Washer

257020

24

Nut with Nylon Insert

253440

25

Rubber Bumper

424015

26

Console with Decal for Liquid-Cooled Diesel Engines

693104

27

96 Side Console Fill Panel

721152

28

Kubota Fuel Pre-Filter

101005

29

Fuel Line Hose

821713

30

Spring Hose Clamp

280261

31

Diesel Fuel Tank Assembly

603812

32

Fuel Tank Mounting Bracket

643144

33

Cap with Fuel Level

141125

34

Fuel Draw Tube

101818

35

Fuel Draw Tube

101817

36

Spring Hose Clamp

280257

37

Return Fuel Line Hose

821740

38

1 inch ID Square Plastic Plug

422065

39

700/900 right Quick Disconnect Deck Mount

643092

40

700/900 left Quick Disconnect Deck Mount

643093

41

Special Carriage Bolt

247280

42

Deck Mount Bushing

282575

43

Floating Deck Mount Bushing

282576

44

Nylon Insert Nut

253460

45

700/900 Adjustable Foot Platform Assembly

604346

46

Foot Rest Tread

420905

47

Nylon Bearing

422615

48

700 Foot Platform Pivot Rod

780673

49

Nylon Insert Nut

253470

50

Rubber Bumper

424052

51

700 Foot Platform Extension

603301

52

Foot Rest Tread Extension

420904

53

Carriage Bolt

247130

54

Compression Spring

283312

55

Foot Rest Isolator Block

424100

56

Hex Bolt

243026

57

Hydro Fan Screen

721243

58

Hex Flange Whiz Bolt

253192

59

Whiz Nut

253035

60

Flood Worklamp

182253

61

Snap-Mount Worklamp Bezel

182251

62

3.252 inch diameter Cup Hole Plug

422066

63

Cup Holder

150225

64

Cap Screw

259030

-

Nut

254436

65

Speed Nut

254431

66

Whiz Nut

253043

67

Battery Tray Pad

427278

68

Hex Whiz Bolt

253173

69

Hex Whiz Bolt

253175

70

Whiz Nut

253025

71

Truss Whiz Bolt

253176

72

Decal Set for Model 721D with Side Console

604298

return to 721D index return to top of page
