grasshopper

725

Year Model:1990

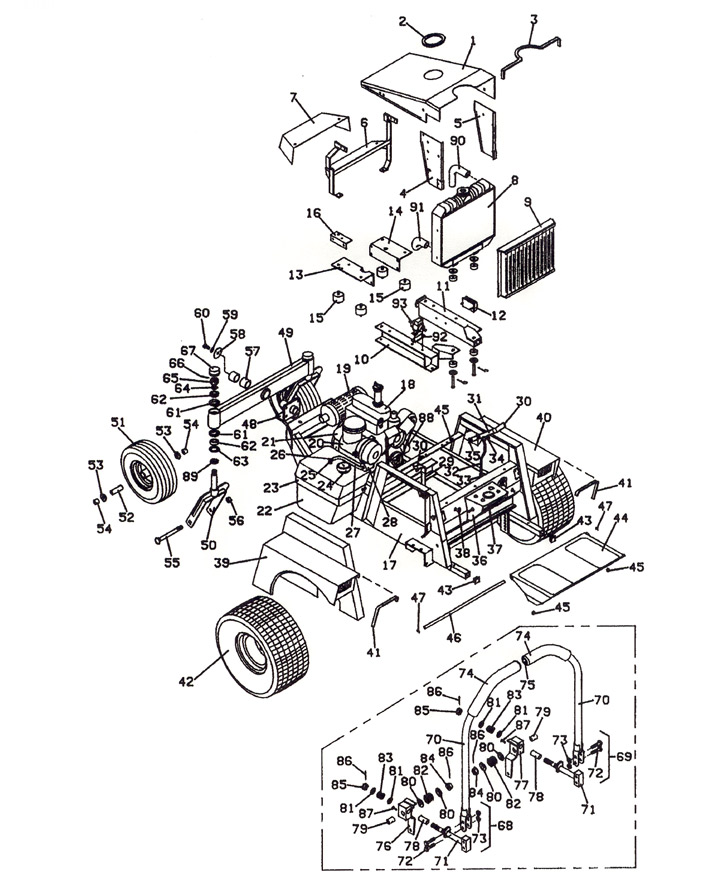

Tractor Assembly

Wiring Diagram


Click On The Part Number For Details

Item #

Description

Part Number

1

Hood Panel

643409

2

Trim - Hood Panel

822633

3

Trim - Hood Panel/Console

822650

4

Grille Support - Right

643799

5

Grille Support - Left

643800

6

Rear Hood Support

643797

7

Shield

643766

8

Radiator

101605

9

Grille

643401

10

Lower Engine Mount - Right

643604

11

Lower Engine Mount - Left

643605

12

Voltage Regulator

185530

13

Upper Engine Mount - Right

643292

14

Upper Engine Mount - Left

643291

15

Vibration Isolator

424078

16

Coil Bracket

724091

17

Tractor Frame

643392

18

Kubota Engine

-

19

Muffler & Gasket Assembly

603590

20

Air Filter

7000011221

21

Air Intake Hose

424519

22

Fuel Tank Assembly

603817

23

Fuel Tank Mounting Bracket

643144

24

Fuel Cap w/Level

141125

25

Fuel Draw Tube

101818

26

Clamp

280270

27

Hose

821713

28

Fuel Pre Filter

101005

29

Throttle Assembly

604823

30

Handle Grip

422150

31

Brake Lever

603557

32

Rod

730356

33

Clevis Yoke

265537

34

Bolt

259741

35

Cotter Pin

260624

36

Console

623241

37

Panel - Console

721076

38

Mechanical Choke Housing

230

39

Fender - Right

643352

40

Fender - Left

643353

41

Trim - Fender Edge

822635

42

Wheel & Tire - Turf - 20 x 10 x 8

483921

-

Wheel - 8 x 6

483410

-

Tire - Turf - 20 x 10 x 8

482471

-

Wheel & Tire - Bar Tread - Right 21 x 11 x 8

483930

-

Wheel & Tire - Bar Tread - Left 21 x 11 x 8

483931

-

Wheel

483415

-

Tire - Bar Tread - 21 x 11 x 8

482480

43

Plug

422065

44

Foot Rest

603345

45

Rubber Bumper

424015

46

Rod

780658

47

External Retainer

263500

48

Rear Axle Pivot Assembly

604597

49

Beam - Dual Wheel

824510

50

Rear Fork Assembly

604364

51

Wheel & Tire Assembly 13 x 5 x 6

483861

-

Tire 13 x 5.00 x 6

482350

-

Wheel w/Bearings & Spacer 6 x 3.25

483301

52

Spacer

902475

53

Bearing

120050

54

Spacer

902425

55

Carriage Bolt

247725

56

Lock Nut

253970

57

Bearing - Reamed Oilite

833275

58

Washer

257061

59

Lock Washer

257432

60

Bolt

243560

61

Bearing Cup

123522

62

Bearing

122522

63

Seal

125855

64

Washer

257091

65

Nut

254502

66

Cotter Pin

260670

67

Dust Cap

481432

68

Steering Lever Assembly - Right

603805

69

Steering Lever Assembly - Left

603806

70

Steering Lever

643497

71

Steering Lever Mount

603558

72

Bolt

253195

73

Nut

253035

74

Handle Grip

422179

75

Vinyl Cap

422095

76

Steering Pivot - Right

643660

77

Steering Pivot - Left

643661

78

Nylon Bearing

603271

79

Nylon Bearing

422561

80

Washer

257067

81

Washer

257063

82

Compression Spring

283381

83

Compression Spring

283324

84

Nut

830355

85

Nut w/Nylon Insert

253470

86

Cotter Pin

260652

87

Plug

422055

88

Oil Filter

100800

89

Spacer

282615

90

Radiator Hose - Upper

101052

91

Radiator Hose - Lower

101052

92

Mount Plate - Fuel Pump

782529

93

Electric Fuel Pump

101510
