grasshopper

725

Year Model:1991

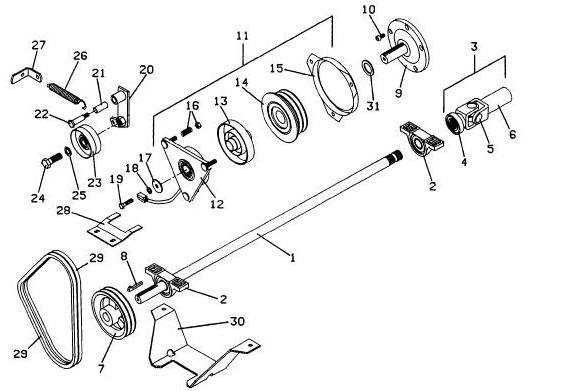

PTO Shaft & Clutch Assembly




Click On The Part Number For Details

Item #

Description

Part Number

1 POWER SHAFT 41.5 644725
2 BEARING -PILLOWBLOCK SC 122044
3 UN HALF SLEEVE 398914
4 YOKE SPLINED QD 401019
5 CROSS & BEARING 121010
6 YOKE W/SLEEVE 401015
7 SHEAVE 415650
8 KEY SQUARE - GIB 281588
9 SHAFT - CLUTCH STUB 824637
10 SOCKET HES SCREW 8M 270075
11 CLUTCH KIT ASSY - MS 1.125  604182
12 FIELD LASSY 388854
13 ROTOR ASSY 388855
14 ARMATURE W/PULLEY 388792
15 BRAKE DRUM 388793
16 SPRING/NUT ASSY 388791
17 WASHER 883803
18 WASHER - LOCK 257412
19 HEX BOLT GR 8 243337
20 IDLER ARM ASSY - PTO 603441
21 NYLON BEARING 422585
22 BOLT SHOULDER 259745
23 IDLER 393175
24 HEX BOLT 243805
25 WASHER - LOCK 257452
26 SPRING - EXTENSION W/SWIVEL 283820
27 BRACKET - IDLER SPRING 732539
28 BRACKET - CLUTCH ANTI-ROTATION 729088
29 BELT 381914
30 GUARD - SHEAVE 700 725272
31 WASHER 257116
