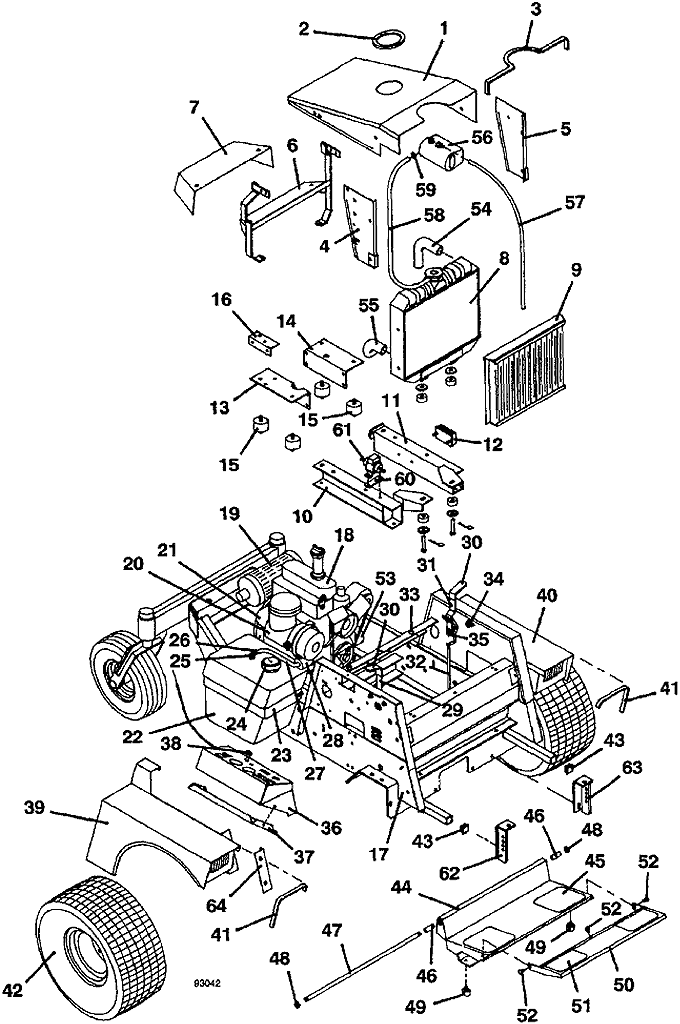

725 • Tractor Assembly
1994
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
Hood with Tank Mount |
643480 |
2 |
Hood Panel Hole Trim |
822633 |
3 |
Hood Panel / Console Hole Trim |
822650 |
4 |
right Grille Support |
643799 |
5 |
left Grille Support |
643800 |
6 |
rear Hood Support |
643797 |
7 |
Clutch Shield |
643766 |
8 |
Kubota Radiator |
101610 |
9 |
Grille |
643401 |
10 |
Lower right Engine Mount |
643604 |
11 |
Lower left Engine Mount |
643605 |
12 |
12v Voltage Regulator |
185530 |
13 |
Upper right Engine Mount |
643292 |
14 |
Upper left Engine Mount |
643291 |
15 |
Vibration Isolator |
424078 |
16 |
Coil Bracket |
724091 |
17 |
721/721D Tractor Frame |
643394 |
18 |
Kubota Gas Engine |
100171 |
19 |
Muffler & Gasket Assembly |
603590 |
20 |
Kubota Air Filter |
100940 |
21 |
Air Intake Hose |
424519 |
22 |
Gasoline Fuel Tank Assembly (Brown) |
603817 |
23 |
Fuel Tank Mounting Bracket |
643144 |
24 |
Cap with Fuel Level |
141125 |
25 |
Fuel Draw Tube |
101818 |
26 |
Screw-type Hose Clamp |
280270 |
27 |
Fuel Line Hose |
821713 |
28 |
Kubota Fuel Pre-Filter |
101005 |
29 |
721/725/725G2 Throttle Assembly |
604823 |
- |
Throttle Cable Replacement Kit for Gas Engine |
604820 |
30 |
Handle Grip |
422150 |
31 |
700 Brake Lever Assembly |
729046 |
- |
Brake Lever Spacer |
423705 |
32 |
700 Brake Linkage Rod |
730361 |
33 |
Rubber Bumper |
424015 |
34 |
Spacer |
902280 |
- |
Hex Bolt |
243330 |
- |
Washer |
257040 |
35 |
Cotter Pin |
260648 |
36 |
721/721D Console |
643197 |
37 |
Side Console Filler Panel |
721136 |
38 |
Mechanical Choke |
142218 |
39 |
right Fender with Console |
643959 |
- |
725 right Trim Decal |
163216 |
40 |
700 Series left Fender |
643963 |
- |
725 left Trim Decal |
163217 |
41 |
700/900 Fender Edge Trim |
822635 |
42 |
20 x 10 x 8 Tan Wheel & Turf Tire |
483921 |
- |
20 x 10 x 8 Turf Tire |
482471 |
- |
21 x 11 x 8 Bar Tread Tire |
482478 |
- |
5-Bolt 8 x 6 Wheel |
483410 |
- |
5-Bolt 8 x 9.125 Wheel |
483415 |
- |
21 x 11 x 8 right Wheel & Bar Tread Tire |
483930 |
- |
21 x 11 x 8 left Wheel & Bar Tread Tire |
483931 |
43 |
1 inch ID Square Plastic Plug |
422065 |
44 |
Foot Platform Assembly |
603343 |
45 |
Foot Rest Tread |
420905 |
46 |
Nylon Bearing |
422615 |
47 |
700 Foot Platform Pivot Rod |
780673 |
48 |
Nylon Insert Nut |
253470 |
49 |
Rubber Bumper |
424052 |
50 |
700 Foot Platform Extension |
603301 |
51 |
Foot Rest Tread Extension |
420904 |
52 |
Carriage Bolt |
247130 |
53 |
Kubota Oil Filter |
100800 |
54 |
Upper Radiator Hose |
101054 |
55 |
Lower Radiator Hose |
101055 |
56 |
Expansion Tank |
422012 |
57 |
Clear Vent Hose |
821748 |
58 |
Hose |
821749 |
59 |
Spring Hose Clamp |
280260 |
60 |
Fuel Pump Mount Plate |
782529 |
61 |
Electric Fuel Pump |
101510 |
62 |
700 right Attachment Mount |
643138 |
63 |
700 left Attachment Mount |
643139 |
64 |
right Fender Cover Panel |
722062 |
65 |
725 Decal Set |
603275 |
