725 • Wiring & Lights

1999

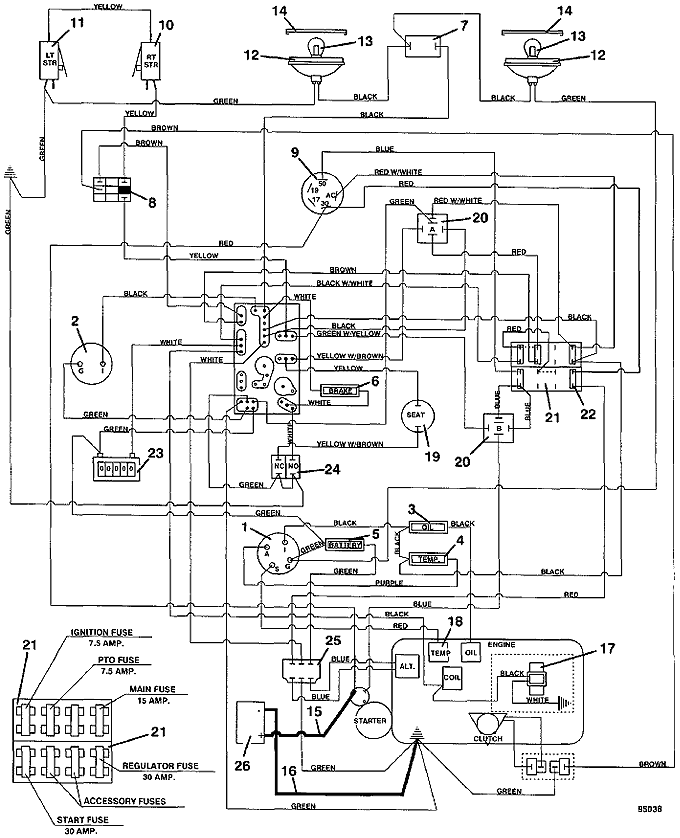

Wiring Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Zoned Electric Temperature Gauge

141160

2

Voltimeter Gauge

141200

3

Oil Indicator Light

182327

4

Temperature Indicator Light

182328

5

Battery Indicator Light

182325

6

Brake Indicator Light

182326

7

Rocker Switch

184179

8

Push/Pull Switch

183925

9

Kubota Sealed Key Switch

183827

10

Lever Switch

183860

-

right Steering Switch Mount

720160

11

Lever Switch

183860

-

left Steering Switch Mount

720161

12

Flood Worklamp

182253

13

Worklamp Light Bulb

182005

14

Snap-Mount Worklamp Bezel

182251

15

11" Red Battery Cable

180310

-

Starter Terminal Boot

425219

16

16" Black Battery Cable

180276

17

Electric Fuel Pump

101510

18

Temperature Sender

141222

19

Seat Switch

183870

20

12v DC Relay

184272

-

Type 1 6mm Push-On

184570

-

.250 Fast-On Terminal

184581

-

5 Way Female Connector

184926

21

Fuse Block

181722

-

1 Wire Fuse Clip

184458

-

2 Wire Fuse Clip

184460

-

Double Fuse Clip

184472

22

30 amp ATC Auto Fuse

181470

-

15 amp ATC Auto Fuse

181465

-

7.5 amp ATC Auto Fuse

181460

23

Snap-In Hour Meter

141551

24

Brake Interlock Switch

183894

25

12v Voltage Regulator

185530

26

12 Volt Side Post Wet Battery

180130

-

Battery Box Assembly with Strap

603104

-

Battery Box Lid Assembly

603570

-

Battery Hold-Down Strap

603110

27

'96 721/725 Console Wiring Assembly

604976

28

721/725 Console Decal

161132

return to 725 index return to top of page
