Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

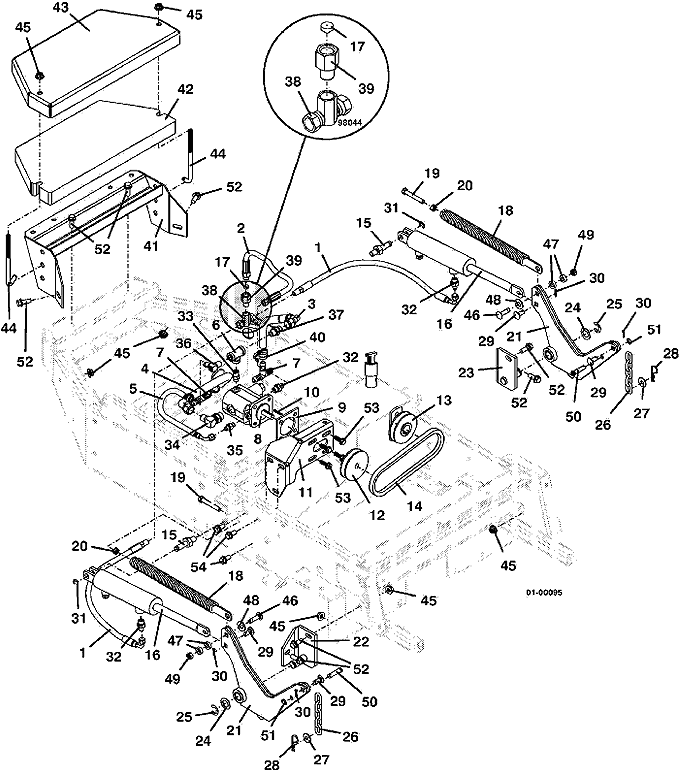

725 • Hydraulic Lift Assembly (optional)

2001

Optional Hydraulic Lift

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Hose Assembly

424306

2

Hose Assembly

424300

3

Hose Assembly

424331

4

Hose Assembly

424332

5

Hose Assembly

424302

6

Reducer Tee

366115

7

Nylon Fitting

363850

8

Clockwise Hydraulic Pump with Solenoid Valve

290072

-

Hydraulic Valve Solenoid

144950

9

Hydraulic Pump Spacer

775049

10

Square Key

281540

11

Hydraulic Pump Mount

643278

12

Hydraulic Pump Sheave

831436

13

Coupling Hub with Sheave

824551

14

Belt

381883

15

Cylinder Mount Pin with Groove

887119

16

Hydraulic Cylinder

290021

-

Hydraulic Lift Cylinder Head Seal Kit

290096

17

Flow Restrictor

780507

18

Spring & Plug Nut Assembly

604762

19

Hex Bolt

243361

20

Nut

254450

21

Hydraulic Lift Rocker

603716

22

900 right Lift Pivot

644517

23

900 left Lift Pivot

644518

24

18 Ga Bushing Washer

257092

25

External Retainer

263529

26

Lift Chain

820320

27

Washer

257040

28

Hair Pin

260523

29

Clevis Pin

261339

30

Cotter Pin

260648

31

Push-On Retainer

263500

32

O-Ring Adapter

360052

33

O-Ring Adapter

360040

34

O-Ring Adapter

360060

35

O-Ring Adapter

360050

36

Flare Adapter

360025

37

Flare Adapter

360015

38

Swivel Tee Adapter

360005

39

O-Ring Adapter

360045

40

Plastic Snap Hose Clamp

280278

41

Weight Mount

643915

42

50 lb. Counterweight

503218

43

50 lb. Weight Cover

729691

44

Hook Bolt

240151

45

Whiz Nut

253043

46

Carriage Bolt

247254

47

.25 Traction Kit Spacer

881095

48

Washer

257062

49

Lock Nut

253890

50

Clevis Pin

261355

51

Push-On Retainer

262950

52

Flange Whiz Bolt

253203

53

Hex Flange Whiz Bolt

253193

54

Whiz Bolt

253200
