Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

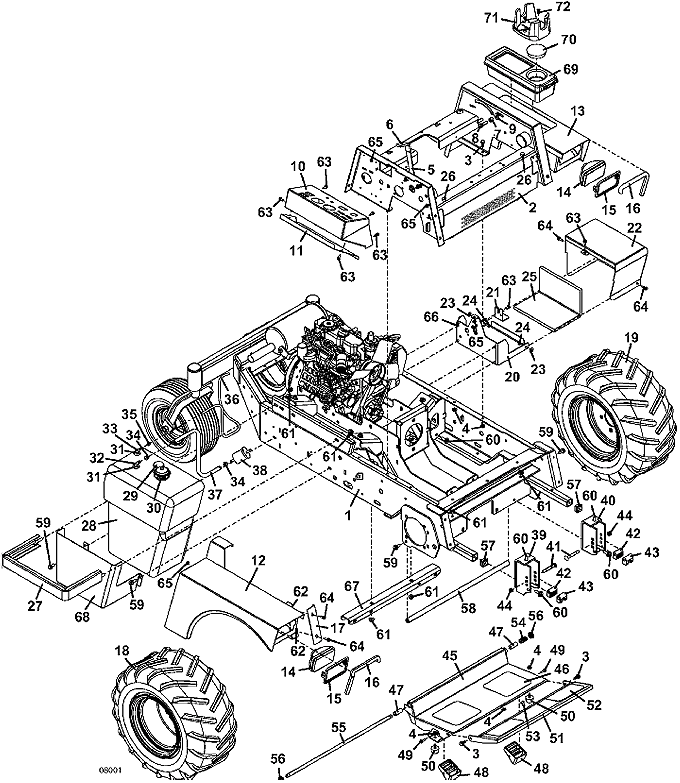

725DT6 • Tractor Assembly

2010

Tractor Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

700T WC Lower Frame

644877

2

700T Upper Frame

644874

3

Hex Flange Whiz Bolt

253192

4

Whiz Nut

253035

5

322D/722D Throttle Assembly

603858

-

Throttle Control Cable Assembly

323656

-

Throttle Lever Stop

722009

-

Heavy Duty Throttle Stop

722736

6

Handle Grip

422150

7

Spacer

902280

8

Hex Bolt

243335

9

Washer

257040

10

Console with Decal for Liquid-Cooled Diesel Engine

693104

11

Fill Panel for 96 Console

721152

12

700/900 right Fender with Safety Decal

693210

-

725D right Trim Decal

163466

13

700/900 left Fender with Safety Decal

693211

-

725D left Trim Decal

163467

14

Flood Worklamp

182253

15

Snap Mount Worklamp Bezel

182251

16

700/900 Fender Edge Trim

822635

17

right Fender Cover Panel

722062

18

right Wheel & Bar Tread Tire, 22 x 11 x 10

483942

-

5 Bolt Wheel Only, 10 x 8.5

483420

-

Bar Tread Tire Only, 22 x 11 x 10

482483

-

Wheel & Turf Tire, 22 x 10 x 10

483946

-

Turf Tire Only, 22 x 10 x 10

482473

19

left Wheel & Bar Tread Tire, 22 x 11 x 10

483943

-

5 Bolt Wheel Only, 10 x 8.5

483420

-

Bar Tread Tire Only, 22 x 11 x 10

482483

-

Wheel & Turf Tire, 22 x 10 x 10

483946

-

Turf Tire Only, 22 x 10 x 10

482473

20

Battery Box without Draw Latch

644163

21

Battery Hold Down Bracket

754135

22

Battery Box Lid w/o Lid

644478

23

Washer

257020

24

Nylon Insert Nut

253440

25

Battery Tray Pad

427278

26

Rubber Bumper

424015

27

8 Gallon Fuel Tank Mounting Bracket

644826

28

8 Gallon Diesel Tank Assembly

604846

29

Fuel Intake Gauge

141144

-

Grommet

424275

30

Screw-On Diesel Fuel Cap

100211

31

Grommet

101875

32

Fuel Tube

363930

33

Fuel Tube

363924

34

Spring Hose Clamp

280261

35

Spring Hose Clamp

280257

36

300S Fuel Return Hose

821741

37

Fuel Line Hose

821716

38

Kubota Fuel Prefilter

101005

39

700/900 right Quick Disconnect Deck Mount

643092

40

700/900 left Quick Disconnect Deck Mount

643093

41

Special Carriage Bolt

247280

42

Deck Mount Bushing

282575

43

Floating Deck Mount Bushing

282576

44

Nylon Insert Nut

253460

45

Adjustable Foot Platform Assembly - 700/900

604346

46

Foot Rest Tread

420905

47

Nylon Bearing

422615

48

Footrest Isolator Block

424100

49

Hex Bolt

243026

50

Rubber Bumper

424052

51

Foot Platform Extension - 700

603301

52

Foot Rest Extension Tread

420904

53

Carriage Bolt

247130

54

Compression Spring

283312

55

Foot Platform Pivot Rod - 700

780673

56

Nylon Insert Nut

253470

57

Square Plastic Plug

422065

58

Tension Rod

780900

59

Whiz Bolt

253200

60

Flange Whiz Bolt

253203

61

Whiz Nut

253043

62

Speed Nut

254431

63

Hex Whiz Bolt

253173

64

Hex Whiz Bolt

253175

65

Whiz Nut

253025

66

Truss Whiz Bolt

253176

67

700T WC Center Crossmember

725511

68

8 Gallon Tank Shield

723339

69

Tool Box

422040

70

Cup Hole Plug

422066

71

Cup Holder

150225

72

Cap Screw

259030

-

Nut

254436

73

725DT6 Decal Set

605334
