727T6 • Wiring & Lights

2009

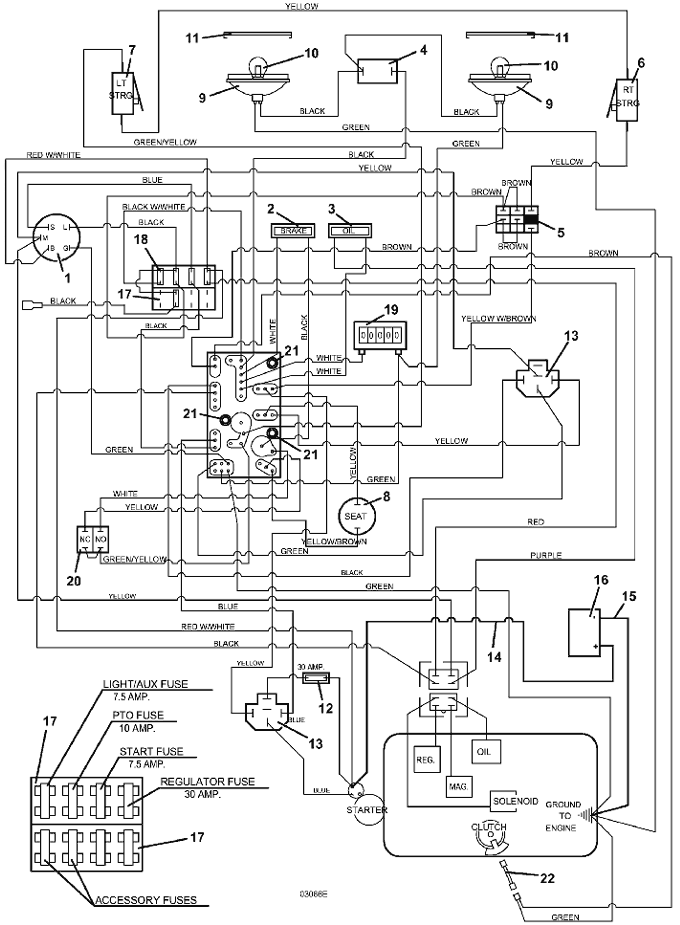

Wiring - Electrical System

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Briggs & Stratton / Kohler Key Switch

183806

-

Ignition Key with Cover

101101

-

Nut

254498

-

Plastic Panel

422078

2

Brake Indicator Light

182326

3

Oil Indicator Light

182327

4

Rocker Switch

184179

5

Push/Pull Switch

183925

6

Lever Switch

183860

-

Steering Switch Mount - right

720160

7

Lever Switch

183860

-

Steering Switch Mount - left

720161

8

Twist-in Seat Switch

183871

9

Flood Worklamp

182253

10

Light Bulb for Headlight

182005

11

Snap Mount Worklamp Bezel

182251

12

Inline Auto Fuse Holder

181735

-

30 amp Auto ATC Fuse

181470

13

12V DC Relay with Mount

184271

-

Type 1 6mm Push-On

184570

-

.250 Fast-On Terminal

184581

-

5-Way Female Connector

184926

14

16" Battery Cable - Red

180315

-

Starter Terminal Boot

425219

15

16" Battery Cable - Black

180276

16

12 Volt Wet Battery

180125

17

Fuse Block

181722

-

1 Wire Fuse Clip

184458

-

2 Wire Fuse Clip

184460

-

Double Fuse Clip

184472

18

30 amp Auto ATC Fuse

181470

-

10 amp Auto ATC Fuse

181462

-

7.5 amp Auto ATC Fuse

181460

19

Snap In Hour Meter

141551

20

Brake Interlock Switch

183894

21

PC Board Support Spacer

423690

22

Pigtail Cable Assembly

388840

23

700K Wiring Assembly

604967

24

Console Decal for 700 Air Cooled Models

161128
