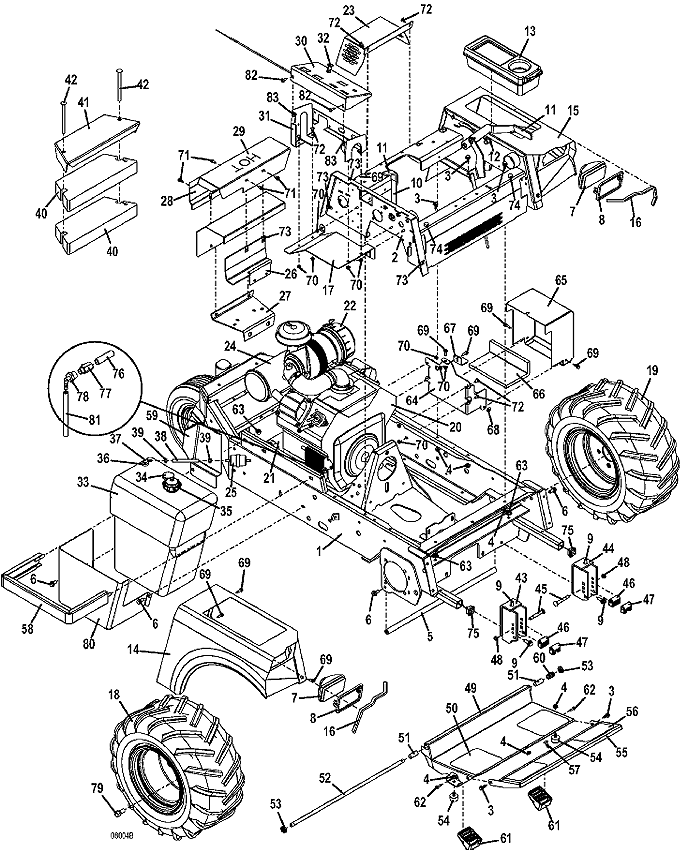

727T6 • Tractor Assembly

2010½

Tractor Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

700T Lower Frame- Air Cooled models

644873

2

700 Low Upper Frame

645211

3

Hex Flange Whiz Bolt

253192

4

Whiz Nut

253035

5

Tension Rod

780900

6

Whiz Bolt

253200

7

Flood Worklamp

182253

8

Snap Mount Worklamp Bezel

182251

9

Flange Whiz Bolt

253203

10

Throttle Assembly

603821

-

Control Cable Assembly

323655

-

Throttle Lever Stop

722009

11

Handle Grip

422150

12

Spacer

902280

-

Hex Bolt

243335

-

Washer

257040

13

Tool Box

422040

14

700/900 right Fender with Safety Decal

693220

-

727K right Trim Decal

163780

15

700/900 left Fender with Safety Decal

693221

-

727K left Trim Decal

163781

16

700/900 Fender Edge Trim

822635

17

Console Mount

645050

18

right Wheel & Bar Tread Tire, 22 x 11 x 10

483942

-

5 Bolt Wheel Only, 10 x 8.5

483420

-

Bar Tread Tire Only, 22 x 11 x 10

482483

-

Wheel & Turf Tire, 22 x 10 x 10

483946

-

Turf Tire Only, 22 x 10 x 10

482473

19

left Wheel & Bar Tread Tire, 22 x 11 x 10

483943

-

5 Bolt Wheel Only, 10 x 8.5

483420

-

Bar Tread Tire Only, 22 x 11 x 10

482483

-

Wheel & Turf Tire, 22 x 10 x 10

483946

-

Turf Tire Only, 22 x 10 x 10

482473

20

27hp Kohler Front Shaft Engine

100190

-

Kohler Engine Shim

900117

21

Kohler Oil Filter

100802

22

Air Cleaner

100209

-

Air Cleaner Cover Clip

100197

-

Air Cleaner Cover

100199

-

Dust Ejector

100202

-

Air Hood (Rain Cap)

100203

-

Kohler HD Outer Air Filter

100936

-

Kohler HD Inner Air Filter

100937

23

700T Coupler Shield

722975

24

Kohler Muffler

101217

-

Kohler Exhaust Gasket

101041

25

Kohler Fuel Filter

101001

26

Shield Mount Bracket Assembly (includes item #73)

605125

27

Lower Muffler Bracket

729270

28

Inner Panel Shield

722309

29

Muffler Shield

722391

30

Console with Decal

693107

31

Console Mount Frame

722876

32

Mechanical Choke

142233

33

8 Gallon Gas Tank Assembly with .25 Barb Fitting

604844

34

In-Tank Fuel Gauge

141144

-

Grommet

424275

35

Fuel Cap

100210

36

Fuel Tube Bushing

101875

37

Fuel Tube

363928

38

Fuel Hose

821710

39

Spring Hose Clamp

280260

40

34 lb. Counterweight

323933

41

34 lb. Weight Cover

729514

42

Carriage Bolt

247325

43

700/900 right Quick Disconnect Deck Mount

643092

44

700/900 left Quick Disconnect Deck Mount

643093

45

Special Carriage Bolt

247280

46

Deck Mount Bushing

282575

47

Floating Deck Mount Bushing

282576

48

Nylon Insert Nut

253460

49

Adjustable Foot Platform Assembly - 700/900

604346

50

Foot Rest Tread

420905

51

Nylon Bearing

422615

52

Foot Platform Pivot Rod - 700

780673

53

Nylon Insert Nut

253470

54

Rubber Bumper

424052

55

Foot Platform Extension - 700

603301

56

Foot Rest Extension Tread

420904

57

Carriage Bolt

247130

58

8 Gallon Fuel Tank Mount Bracket

644826

59

8 Gallon Fuel Tank Heat Shield

721181

60

Compression Spring

283312

61

Footrest Isolator Block

424100

62

Hex Bolt

243026

63

Whiz Nut

253043

64

G2 Battery Box for Air Cooled Model

644099

65

Battery Cover for Air Cooled Model

644162

66

Battery Tray Pad

427273

67

Battery Clamp

729001

68

Washer

257020

-

Nylon Insert Nut

253440

69

Hex Whiz Bolt

253175

70

Whiz Nut

253025

71

Hex Whiz Bolt

253173

72

Truss Whiz Bolt

253176

73

Speed Nut

254431

74

Rubber Bumper

424015

75

Square Plastic Plug

422065

76

Nipple

364518

77

Oil Drain Valve

143610

78

Nylon Fitting

363855

79

Lug Bolt

248565

80

8 Gallon Tank Shield

723339

81

Oil Drain Tube

821751

82

Philips Truss Whiz Bolt

253179

83

Plastic Retainer Nut

254432

82

727T6 Decal Set

605543

return to 727T6 index return to top of page
