Genuine OEM Grasshopper® Mower Parts Diagrams

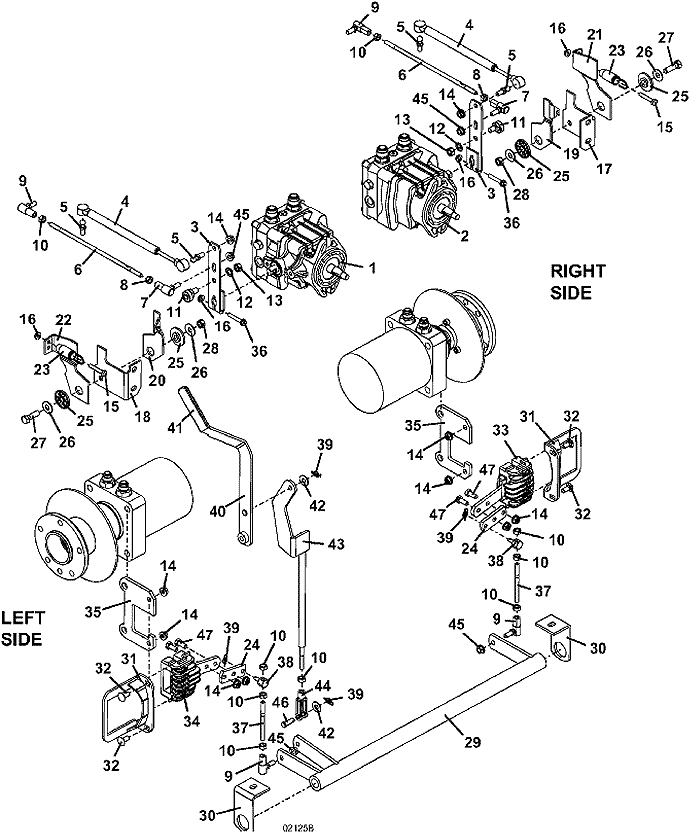

729G2 • Drive Linkage Assembly
2005
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
Hydro Pump with Shaft - left |
391462 |
- |
Seal |
125165 |
- |
Charge Cover Square Seal Ring |
130020 |
2 |
Hydro Pump with Shaft - right |
391463 |
- |
Seal |
125165 |
- |
Charge Cover Square Seal Ring |
130020 |
3 |
Pump Control Arm - right |
725338 |
4 |
Damper |
285031 |
5 |
Ball Stud |
265680 |
6 |
Steering Linkage Pump Rod |
780164 |
7 |
Ball Joint - Lefthand Thread |
265616 |
8 |
Nut |
254444 |
9 |
Ball Joint - Lefthand Thread |
265615 |
10 |
Nut .312-24 |
254441 |
11 |
Eccentric Roller Assembly |
603726 |
12 |
Washer |
257410 |
13 |
Nut .375-16 |
254450 |
14 |
Whiz Nut |
253035 |
15 |
Hex Bolt .250-20 x 1.500 |
243035 |
16 |
Whiz Nut .250-20 |
253025 |
17 |
Neutral Return Mount - RT |
754120 |
18 |
Neutral Return Mount - LT |
754121 |
19 |
Neutral Return Arm - M1 RT |
729138 |
20 |
Neutral Return Arm - M1 LT |
729139 |
21 |
Neutral Return Front Arm - RT |
729136 |
22 |
Neutral Return Front Arm- LT |
729137 |
23 |
Extension Spring |
283823 |
24 |
Brake Strap |
782851 |
25 |
Neutral Return Pivot Bearing |
822304 |
26 |
Washer |
257040 |
27 |
Hex Bolt .375-16 x 1.25 |
243335 |
28 |
Lock Nut .375-16 |
253890 |
29 |
Brake Pivot Linkage Rod |
644539 |
30 |
Brake Pivot Mount - 1.281 |
732616 |
31 |
Caliper Mount |
644121 |
32 |
Carriage Bolt .312 x .75 |
247130 |
33 |
Brake Assy - FT MNT, RT Side, M1-LT Side |
481102 |
- |
Brake Pad Kit |
603150 |
34 |
Brake Assy - FT MNT, LT Side, M1-RT Side |
481103 |
- |
Brake Pad Kit |
603150 |
35 |
Brake Mount - 7.75 Rotor |
776174 |
36 |
Whiz Bolt .25-20 x 1.5 Hex |
253182 |
37 |
Brake Linkage Rod |
780158 |
38 |
Brake Linkage Pin |
880926 |
39 |
Cotter Ring |
260606 |
40 |
Brake Handle |
644035 |
41 |
Grip Handle |
422150 |
42 |
Washer |
257030 |
43 |
Brake Linkage Arm |
644036 |
44 |
Clevis Yoke |
265537 |
45 |
Whiz Nut .312-24 |
253038 |
46 |
Clevis Pin .312 x 1 |
261284 |
47 |
Hex bolt .312-18 x .750 |
243195 |
48 |
Whiz Bolt |
253190 |
