729G2 • Wiring & Lights

2005

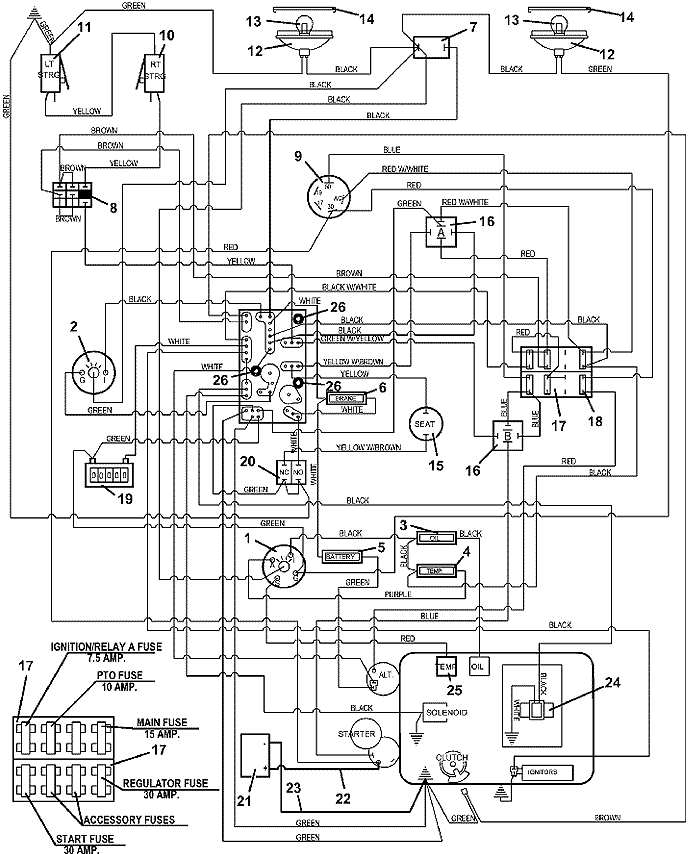

Wiring Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Zoned Electric Temperature Gauge

141160

2

Voltmeter Gauge

141200

3

Oil Indicator Light

182327

4

Temperature Indicator Light

182328

5

Battery Indicator Light

182325

6

Brake Indicator Light

182326

7

Rocker Switch

184179

8

Switch Push/Pull

183925

9

Switch Key Sealed - Kubota

183827

-

Kubota Double Notch Ignition Key

101106

10

Lever Switch

183860

-

Steering Switch Mount - right

720160

11

Lever Switch

183860

-

Steering Switch Mount - left

720161

12

Worklamp Flood

182253

13

Light Bulb for Headlight

182005

14

Snap Mount Worklamp Bezel

182251

15

Twist-in Seat Switch

183871

16

12V DC Relay

184272

16

Type 1 6mm Push-On

184570

-

.250 Fast-On Terminal

184581

-

5-Way Female Connector

184926

17

Fuse Block

181722

-

1 Wire Fuse Clip

184458

-

2 Wire Fuse Clip

184460

-

Double Fuse Clip

184472

18

30 amp Auto ATC Fuse

181470

-

15 amp Auto ATC Fuse

181465

-

10 amp Auto ATC Fuse

181462

-

7.5 amp Auto ATC Fuse

181460

19

Snap In Hour Meter

141551

20

Brake Interlock Switch

183894

21

12 Volt Side Post Wet Battery

180130

22

14" Battery Cable - Red

180313

-

Alternator Terminal Red Boot

425215

-

Starter Terminal Boot

425219

-

Battery Terminal Boot

425223

23

20" Battery Cable - Black

180282

24

Electric Fuel Pump

101510

25

Temperature Sender

141222

26

PC Board Support Spacer

423690

27

Inline Regulator Fuse Holder

604888

28

729 Gas Engine Wiring Assembly

604970

29

721/725 Console Decal

161132
