Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

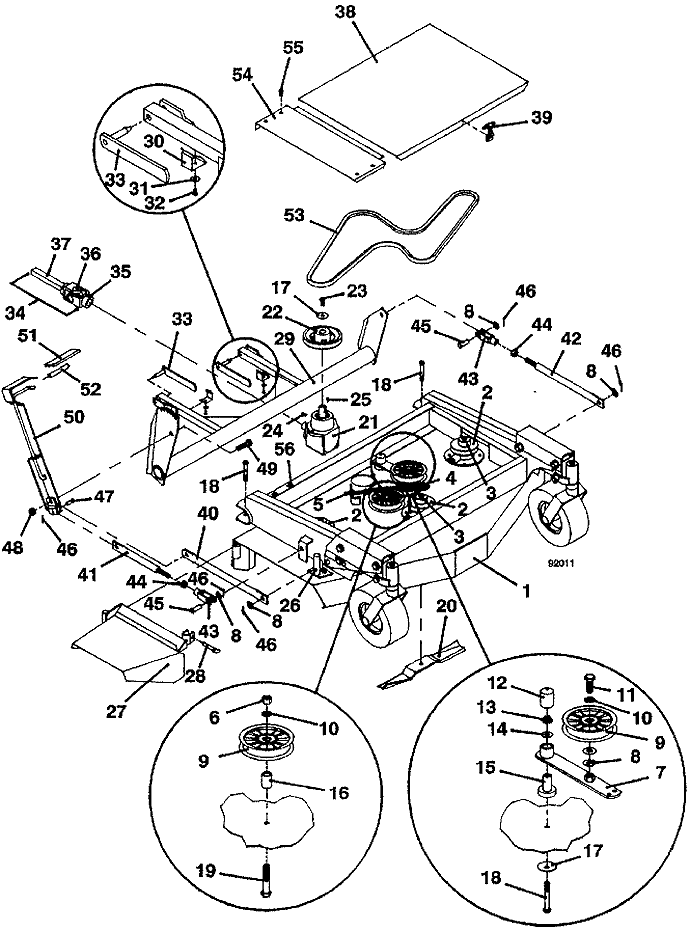

9044 Deck • Mower Assembly

1992

Mower Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

9044 Deck Weldment

643258

2

Sheave

415826

3

Spacer

282630

4

Extension Spring with Swivel

283820

5

Idler Adjustment J Bolt

730391

6

Nut

254470

7

Idler Arm with Bearing & Pedestal

824502

8

Washer

257062

9

Idler

393225

10

Lock Washer

257432

11

Hex Bolt

243565

12

Vinyl Cap

422098

13

Whiz Nut

253043

14

Washer

257040

15

Pedestal Bearing

121650

16

Idler Spacer

902325

17

Cupped Washer

257041

18

Hex Bolt

243365

19

Hex Bolt

243600

20

15" Hi-Lift Notch Blade

320234

-

15" Medium-Lift Blade

320231

21

Counter-clockwise Right Angle Gear Box

390024

22

Sheave

415876

23

Hex Bolt

243331

24

Woodruff Key

281833

25

Woodruff Key

281828

26

Clevis Shaft

643235

27

90 Series Discharge Shield

643747

28

Hitch Pin

260400

29

44" Deck Lift Arm

643525

30

Attaching Pin Clip

280390

31

Pin Clip Washer

770025

32

Drive Screw

262644

33

Attaching Pin

643625

34

UN Half Shaft

398525

35

Yoke

401010

36

Cross & Bearing

121010

37

Yoke & Shaft

402605

38

9044 Shield Assembly

603769

39

Rubber Draw Latch

281301

40

right 44 Deck Lift Linkage

734069

41

Lift Lever Linkage

603562

42

44" Deck Linkage Arm

603563

43

Clevis Yoke

265554

44

Nut

254475

45

Clevis Pin

261426

46

Cotter Pin

260650

47

Clevis Pin

261346

48

Lock Nut

253930

49

Hex Bolt

243580

50

Deck Lift Lever

643529

51

Handle Grip

422155

52

Handle Grip

422158

53

Belt

382990

54

right 9044 Belt Shield

722308

55

Hex Whiz Bolt

253173

56

Speed Nut

254431

57

Mower Safety Decal Set

603280
